Mini Mini Workshop Manual (1996-2000)04 · Engine
04 · Engine

Engine and gearbox (page 2 of 9)

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs
EngineEngine and gearbox · page 2 of 9
Diagram

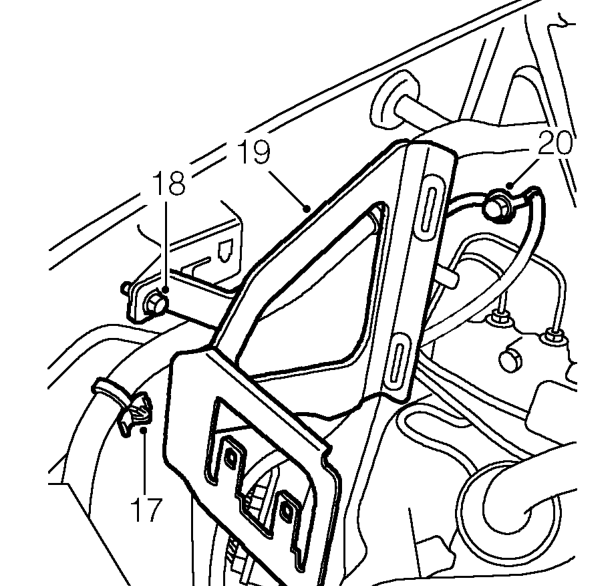

  1. Release clip securing main harness to ECM mounting bracket.
  2. Remove bolt securing ECM mounting bracket to body.
  3. Release ECM mounting bracket from body and remove.
  4. Remove bolt securing earth leads to body.
Remove bolt securing earth leads to body.

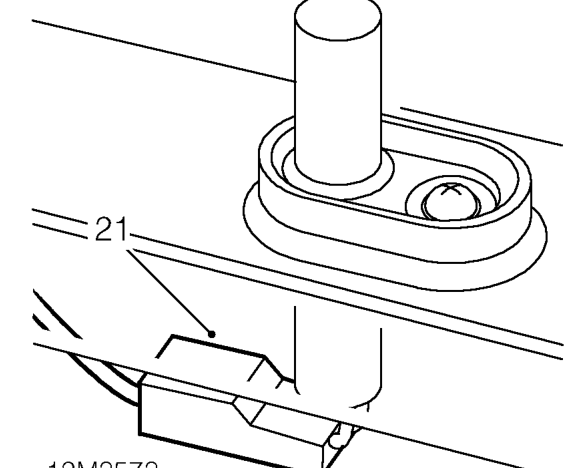

  1. Disconnect Lucar from bonnet switch.
Disconnect Lucar from bonnet switch.

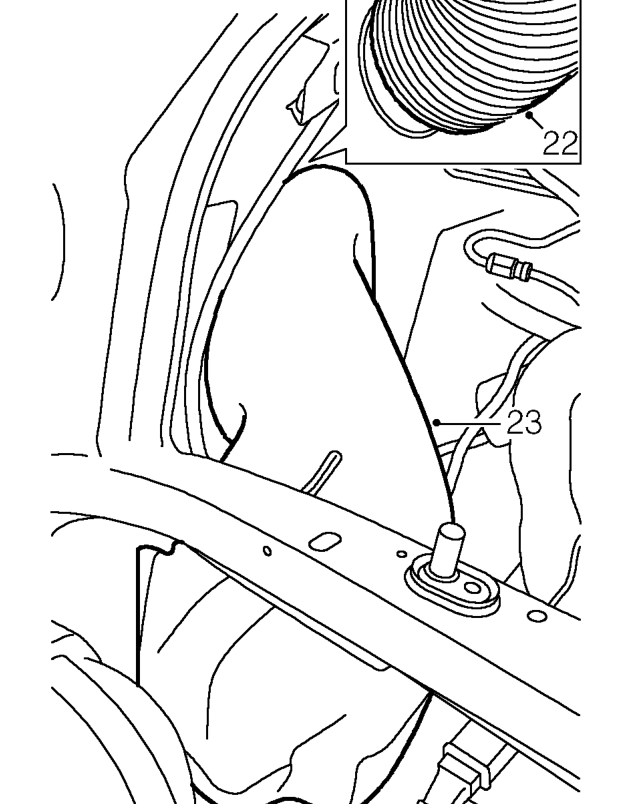

  1. Disconnect fresh air intake hose from duct under RH front wing.
  2. Release and remove fresh air intake duct from inner wing.
Release and remove fresh air intake duct from inner wing.

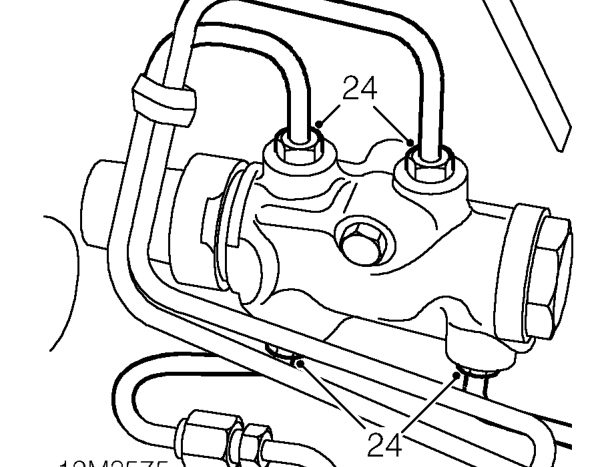

  1. Loosen unions and disconnect brake pipes from pressure reducing valve.

CAUTION: Plug the connections.
