EngineOil pressure switch

OIL PRESSURE SWITCH

Service repair no - 12.60.50

Remove

  1. Remove ignition coil. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

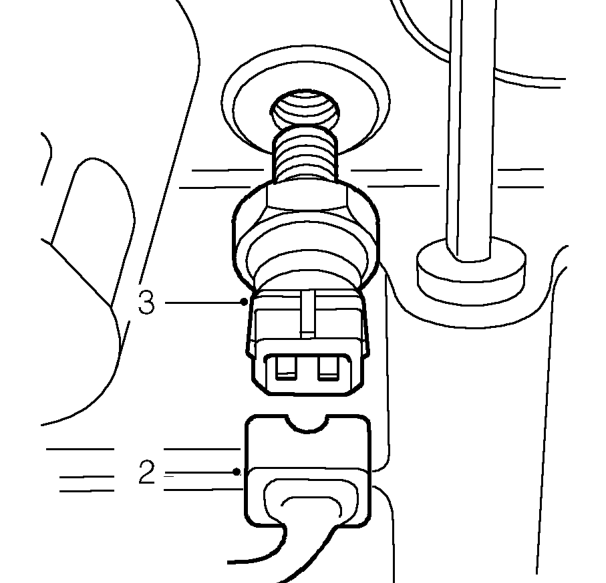

Oil pressure switch – Remove ignition coil. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  1. Disconnect multiplug from oil pressure switch.
  2. Loosen oil pressure switch and remove.

Refit

  1. Clean threads of oil pressure switch and hole in cylinder block.
  2. Apply Loctite 572 to threads of oil pressure switch.
  3. Fit oil pressure switch and tighten to 25 Nm.
  4. Fit ignition coil. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

OIL PRESSURE RELIEF VALVE

Service repair no - 12.60.56

Remove

  1. Remove starter motor. See ELECTRICAL, Repairs.

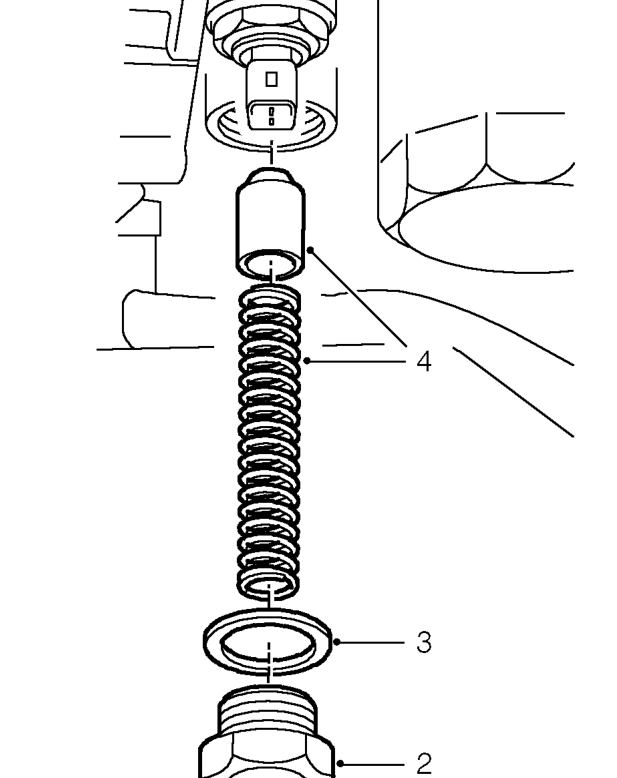

Oil pressure relief valve – Remove starter motor. See ELECTRICAL, Repairs.
  1. Remove oil pressure relief valve cap.
  2. Remove and discard sealing washer from cap.
  3. Remove spring and relief valve from cylinder block.
