Workshop Manuals Factory service & repair Mini
Mini Mini Workshop Manual (1996-2000)04 · Engine
04 · Engine

Oil pump

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs › Oil pump
EngineOil pump · page 1 of 5

OIL PUMP

Service repair no - 12.60.26

Remove

  1. Remove flywheel housing gasket. See this section.
Oil pump – Remove flywheel housing gasket. See this section.

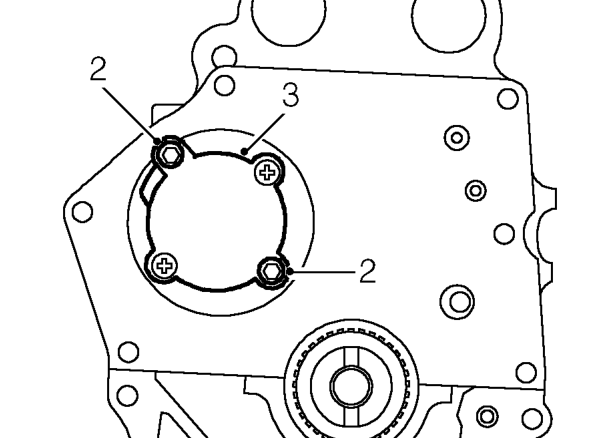

  1. Remove 2 bolts securing oil pump to engine.
  2. Remove pump and discard gasket.

Refit

  1. Clean mating faces of oil pump and cylinder block.
  2. Prime oil pump with clean engine oil
  3. Rotate pump to align drive and fit pump with a new gasket.
  4. Fit bolts and tighten to 11 Nm.
  5. Fit flywheel housing gasket. See this section.

ENGINE TO GEARBOX GASKET

Service repair no - 12.60.38

Remove

  1. Remove engine and gearbox from vehicle. See this section.
Engine to gearbox gasket – Remove engine and gearbox from vehicle. See this section.

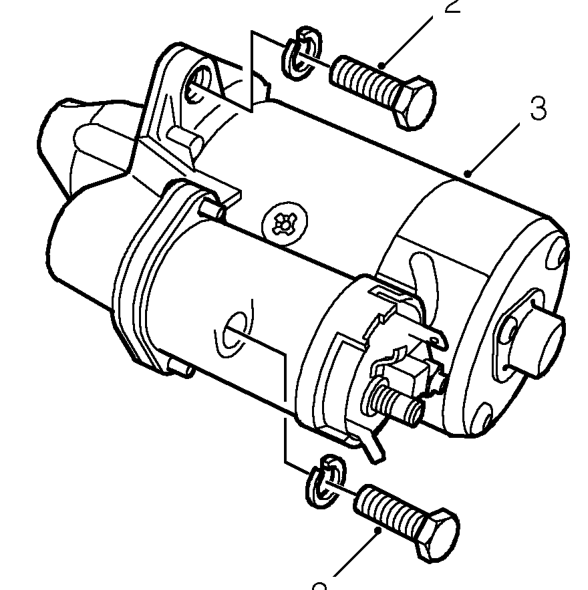

  1. Remove 2 bolts securing starter motor to flywheel housing.
  2. Remove starter motor.
Engine to gearbox gasket – Remove starter motor.

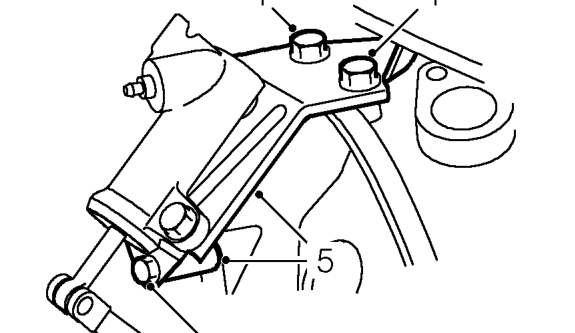

  1. Remove 3 bolts securing clutch slave cylinder mounting bracket to flywheel housing.
  2. Remove slave cylinder mounting bracket and collect spacer.
