04 · Engine

Oil pump (page 3 of 5)

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs
EngineOil pump · page 3 of 5
Diagram

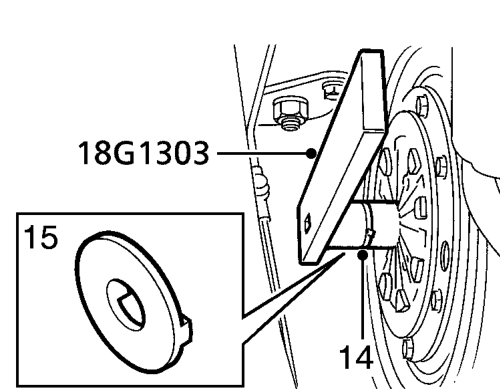

  1. Using tool 18G 1303, remove flywheel retaining bolt.
  2. Remove key plate from crankshaft.
Remove key plate from crankshaft.

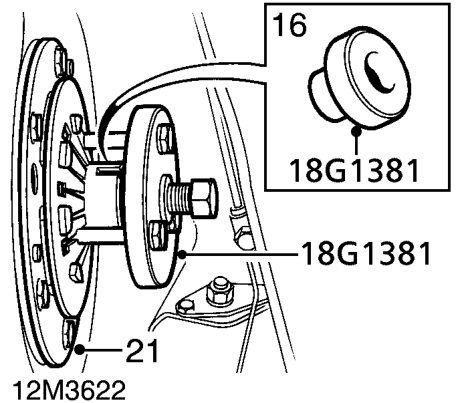

  1. Fit thrust button of tool 18G 1381 to crankshaft.
  2. Loosen centre bolt of tool 18G 1381 and position to flywheel.
  3. Fit and tighten bolts securing tool 18G 1381 to flywheel
  4. Tighten centre bolt of tool to release flywheel from crankshaft taper.
  5. Remove tool 18G 1381 from flywheel.
  6. Remove flywheel and clutch assembly.
  7. Remove oil seal dust shield from primary gear.
Remove oil seal dust shield from primary gear.

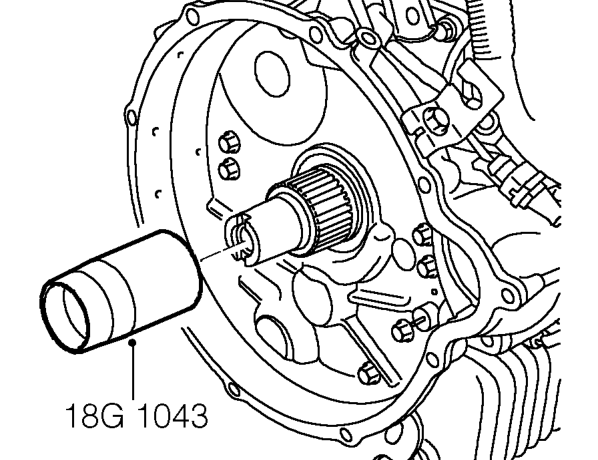

  1. Fit protective sleeve 18G 1043 to primary gear splines.
Fit protective sleeve 18G 1043 to primary gear splines.

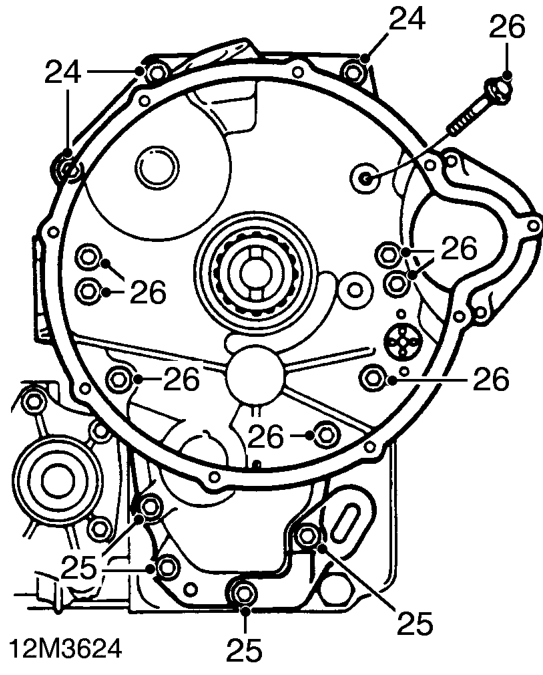

  1. Remove 3 bolts securing top of flywheel housing to engine.
  2. Remove 4 bolts securing bottom of flywheel housing to gearbox and collect bracket.
  3. Remove 8 inner bolts securing flywheel housing to engine and gearbox.

NOTE: The 3 upper bolts securing the centre of the flywheel housing to engine and gearbox have a different thread than the other 5.

  1. Release flywheel housing from 2 locating dowels on engine and remove housing.
