Mini Mini Workshop Manual (1996-2000)04 · Engine
04 · Engine

Oil pump (page 4 of 5)

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs
EngineOil pump · page 4 of 5
Diagram

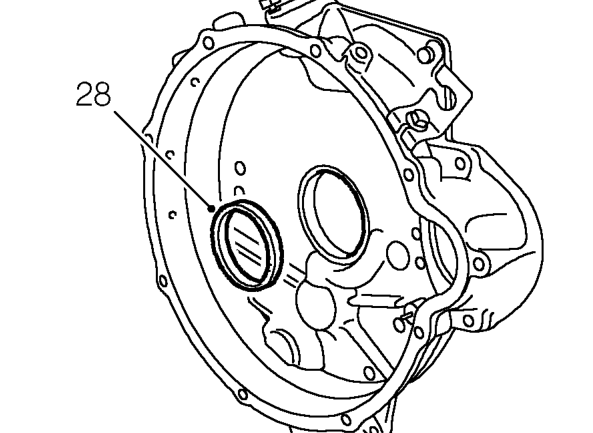

  1. Using a suitable drift, remove primary gear oil seal from flywheel housing.
Using a suitable drift, remove primary gear oil seal from flywheel housing.

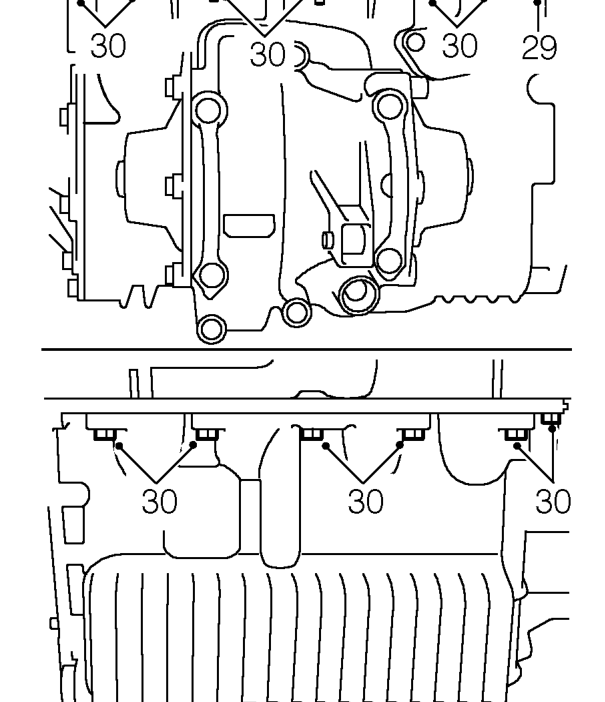

  1. Remove nut and bolt securing gearbox to engine.
  2. Remove 11 bolts and 2 nuts securing gearbox to engine.
  3. Take weight of engine on lifting chains and release gearbox from engine.
Take weight of engine on lifting chains and release gearbox from engine.

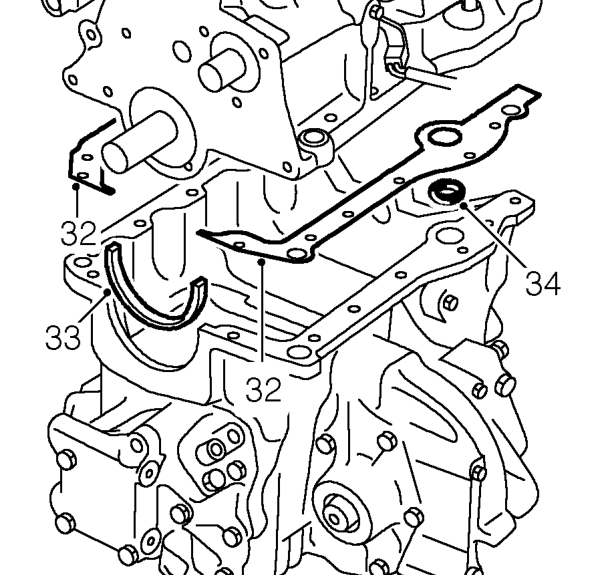

  1. Remove and discard gaskets.
  2. Remove and discard main bearing cap oil seal.
  3. Remove and discard ’O’ ring.
