EngineOil pump · page 2 of 5

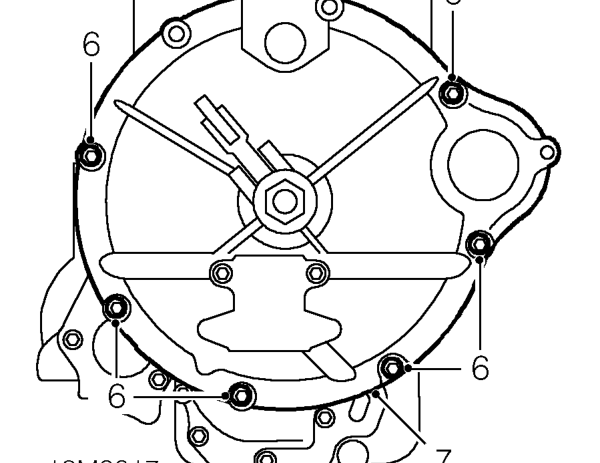

- Remove 6 bolts securing cover to flywheel housing.
- Remove flywheel housing cover.

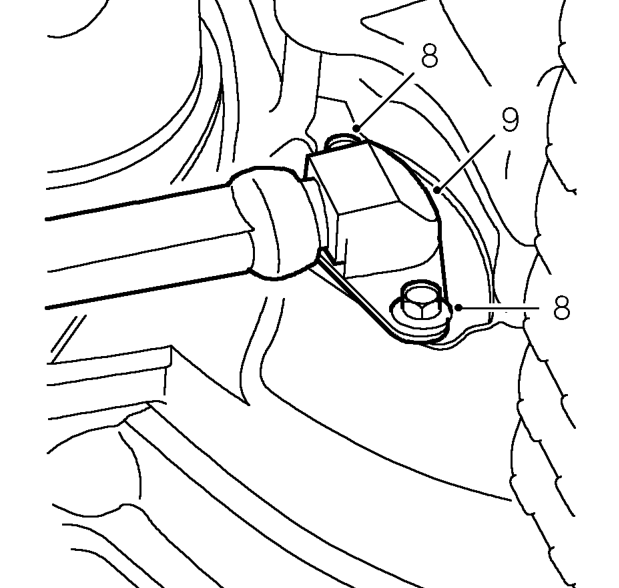

- Remove 2 bolts securing CKP sensor to flywheel housing.
- Remove CKP sensor.

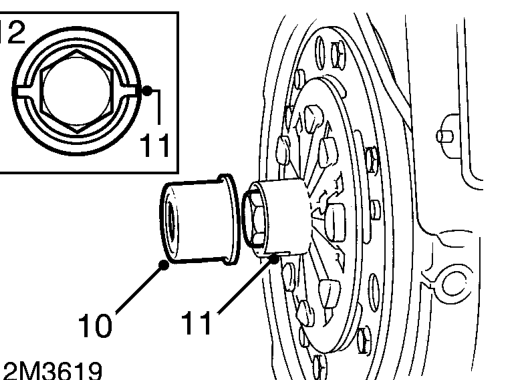

- Remove thrust bearing sleeve from clutch hub.
- Rotate crankshaft and knock back tabs on clutch hub lock washer.
- Rotate crankshaft until clutch hub slots are aligned horizontally.
CAUTION: If crankshaft is not positioned correctly, primary drive ’C’ shaped washer may become displaced and make it impossible to remove flywheel.

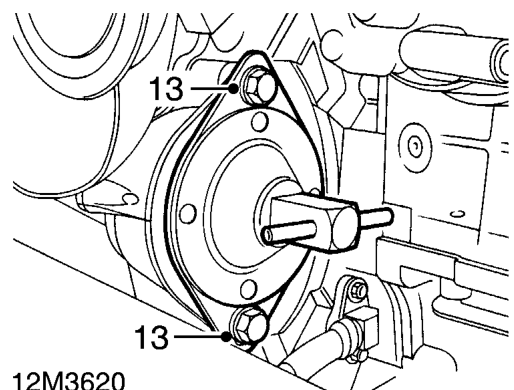

- Fit flywheel locking tool and secure with bolts.
