FLYWHEEL HOUSING GASKET

Service repair no - 12.53.04

Remove

  1. Drain engine/gearbox oil. See MAINTENANCEMaintenance.
  2. Remove brake master cylinder. See BRAKES, Repairs.
  3. Remove clutch assembly and release bearing. See CLUTCH, Repairs.
Flywheel housing gasket – Remove clutch assembly and release bearing. See CLUTCH, Repairs.

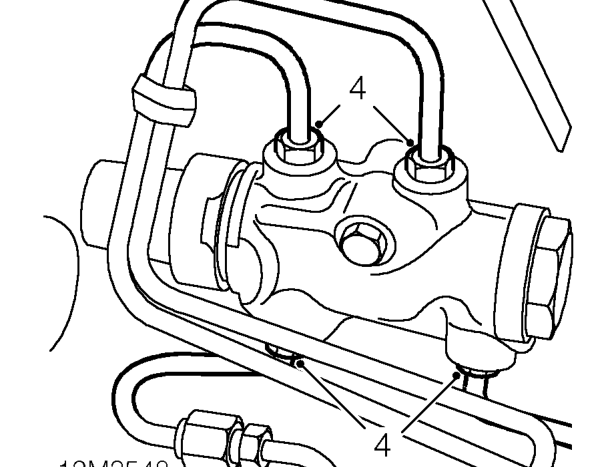

  1. Loosen unions and disconnect brake pipes from pressure reducing valve.

CAUTION: Plug the connections.

Flywheel housing gasket – Loosen unions and disconnect brake pipes from pressure reducing valve.

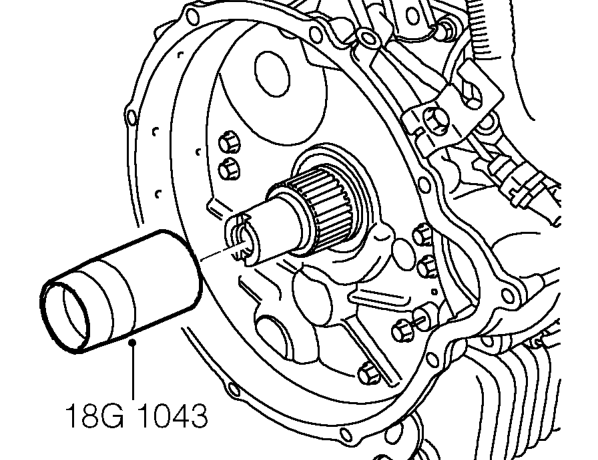

  1. Fit protective sleeve 18G 1043 to primary gear splines.
Flywheel housing gasket – Fit protective sleeve 18G 1043 to primary gear splines.

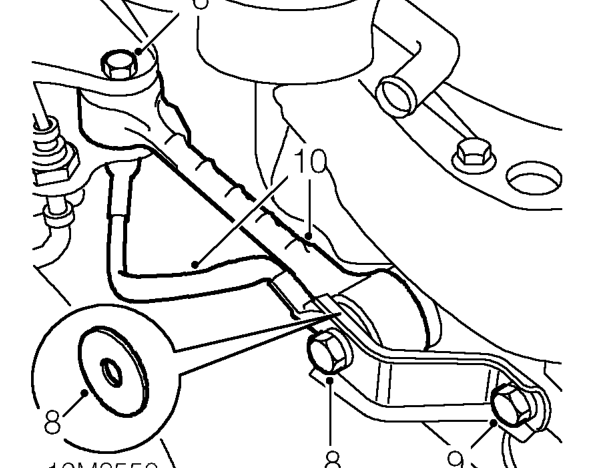

  1. Remove nut and bolt securing steady bar to body.
  2. Release earth strap from body.
  3. Remove bolt securing steady bar to engine and collect washers.
  4. Remove bolt securing engine steady bar bracket to engine and remove bracket.
  5. Remove engine steady bar and earth strap.
