Flywheel housing gasket (page 2 of 3)

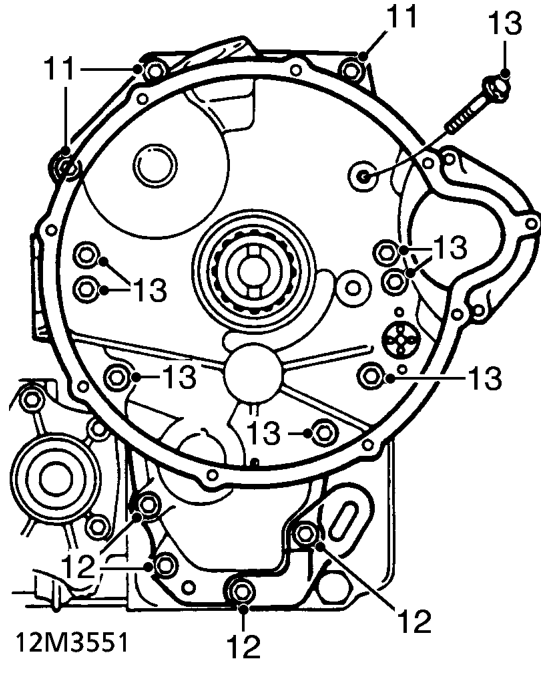

11. Remove 3 bolts securing top of flywheel housing to engine.
12. Remove 4 bolts securing bottom of flywheel housing to gearbox and collect bracket.
13. Remove 8 inner bolts securing flywheel housing to engine and gearbox.

NOTE: The 3 upper bolts securing the centre of the flywheel housing to engine and gearbox have a different thread than the other 5.

14. Raise engine on jack.

15. Release flywheel housing from 2 locating dowels on engine.
16. Manoeuvre flywheel housing from engine compartment and remove.
17. Remove locating dowels from engine and gearbox.
