Flywheel housing oil seal

Do not carry out further dismantling if component is removed for access only.

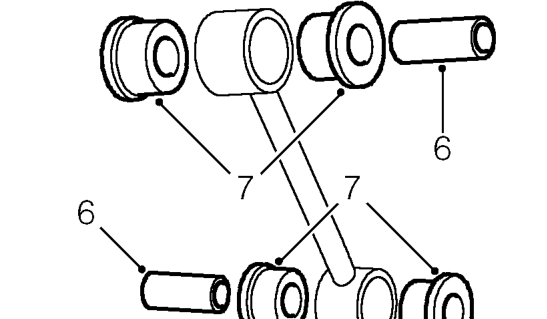

6. Remove spacers from steady bar bushes.
7. Remove bushes from steady bar.
8. Clean engine steady bar.
9. Fit bushes to steady bar.
10. Fit spacers to steady bar bushes.

Refit

1. Position steady bar to mounting on subframe.
2. Fit washer between steady bar and subframe.
3. Fit nut and bolt securing steady bar to subframe and tighten to 40 Nm.
4. Align steady bar to bracket on flywheel housing and position washers.
5. Fit nut and bolt securing steady bar to flywheel housing bracket and tighten to 40 Nm.
6. Remove stand(s) and lower vehicle.

FLYWHEEL HOUSING OIL SEAL

Service repair no - 12.53.02

Remove

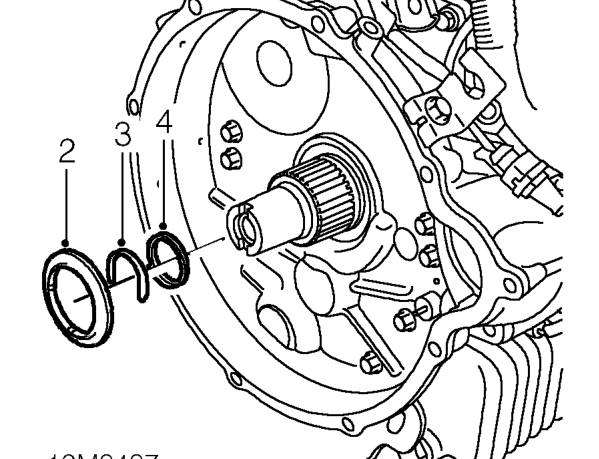

1. Remove clutch assembly. See CLUTCH, Repairs.

2. Remove dust shield from primary gear.
3. Remove ’C’ washer securing primary gear to crankshaft.
4. Remove backing ring from crankshaft.
