Mini Mini Workshop Manual (1996-2000)04 · Engine
04 · Engine

Engine RH mounting

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs › Engine RH mounting
EngineEngine RH mounting

ENGINE RH MOUNTING

Service repair no - 12.45.12

Remove

  1. Remove flywheel housing cover. See CLUTCH, Repairs.

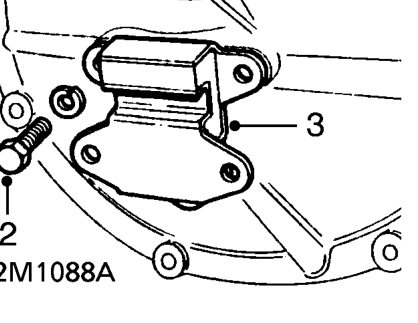

Engine rh mounting – Remove flywheel housing cover. See CLUTCH, Repairs.
  1. Remove 3 bolts securing engine mounting to flywheel housing cover, collect washers.
  2. Remove engine mounting.

Refit

  1. Clean mating face of flywheel housing cover and engine mounting.
  2. Position engine mounting to cover, fit bolts and washers and tighten to 18 Nm.
  3. Fit flywheel housing cover. See CLUTCH, Repairs.

ENGINE STEADY BAR - UPPER

Service repair no - 12.45.16

Remove

  1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
Engine steady bar - upper – Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  1. Remove nut and bolt securing steady bar to body.
  2. Release earth strap from body.
  3. Remove bolt securing steady bar to engine and collect washers.
  4. Remove bolt securing engine steady bar bracket to engine and remove bracket.
  5. Remove engine steady bar and earth strap.
