CYLINDER HEAD GASKET

Service repair no - 12.29.02

Remove

  1. Disconnect battery earth lead.
  2. Remove bonnet. See BODY, Exterior fittings.
  3. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  4. Remove front pipe to manifold gasket. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
Cylinder head gasket – Remove front pipe to manifold gasket. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

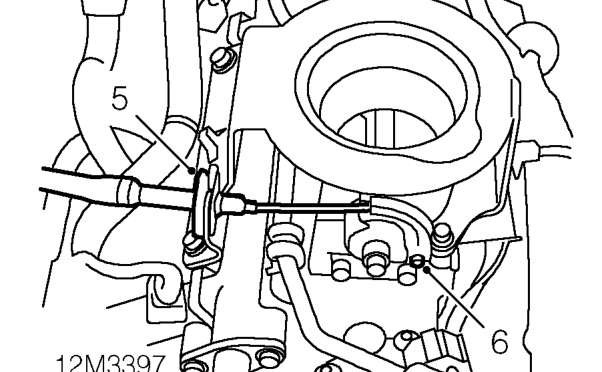

  1. Release throttle cable adjustment nut from abutment bracket.
  2. Disconnect throttle cable from throttle cam and position aside.
Cylinder head gasket – Disconnect throttle cable from throttle cam and position aside.

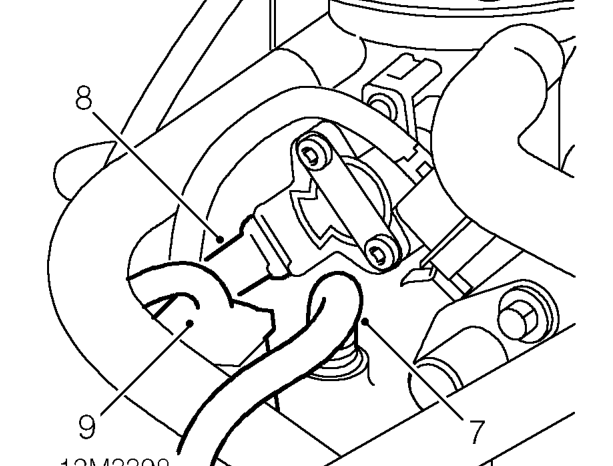

  1. Depress plastic collar on quick fit connector and disconnect brake servo vacuum pipe from inlet manifold.
  2. Disconnect multiplug from TP sensor.
  3. Disconnect multiplug from IACV.
Cylinder head gasket – Disconnect multiplug from IACV.

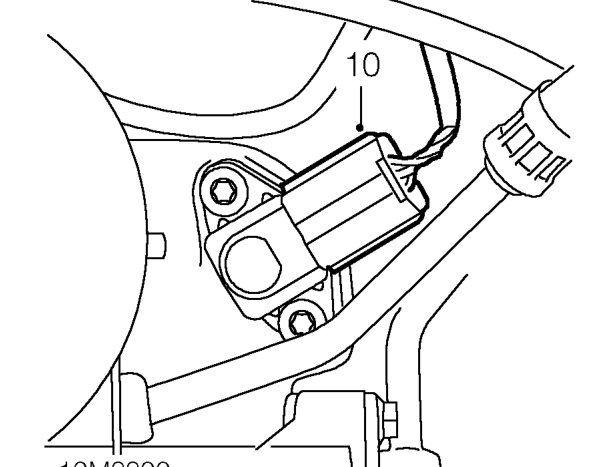

  1. Disconnect multiplug from MAP sensor.
Cylinder head gasket – Disconnect multiplug from MAP sensor.

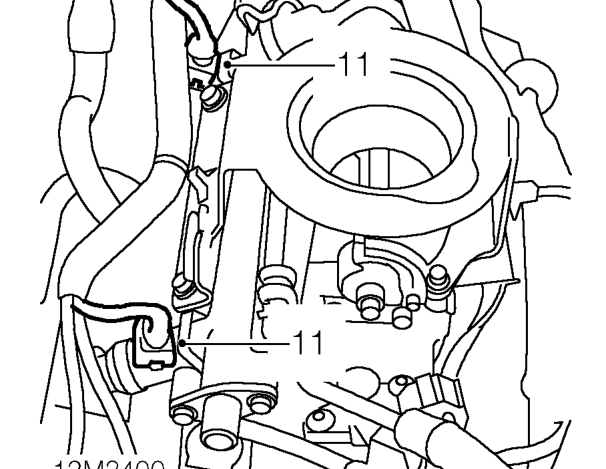

  1. Disconnect 2 multiplugs from fuel injectors.
