Mini Mini Workshop Manual (1996-2000)04 · Engine
04 · Engine

Cylinder head gasket (page 3 of 5)

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs
EngineCylinder head gasket · page 3 of 5
Diagram

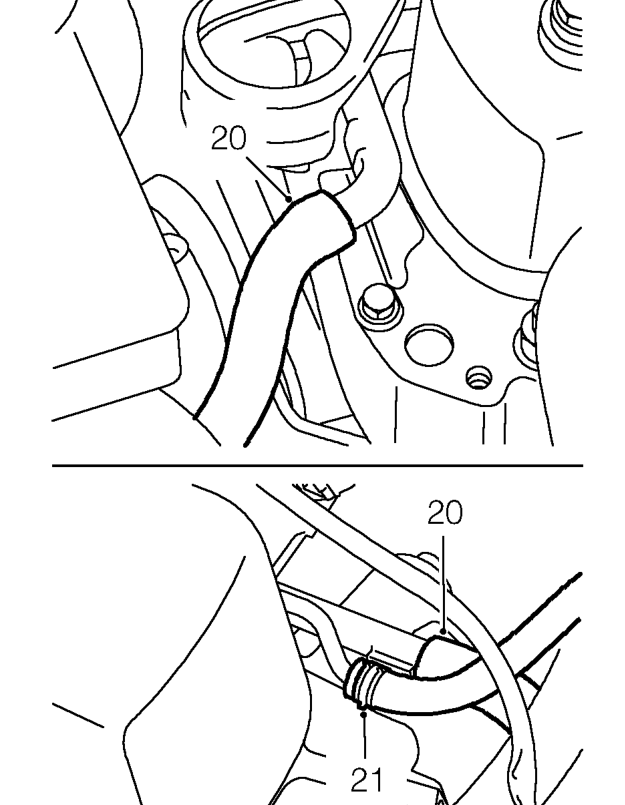

  1. Disconnect 2 engine breather hoses from connecting pipe.
  2. Release clip and disconnect evaporative emission canister purge hose from inlet manifold.
  3. Drain cooling system. See COOLING SYSTEM, Adjustments.
Drain cooling system. See COOLING SYSTEM, Adjustments.

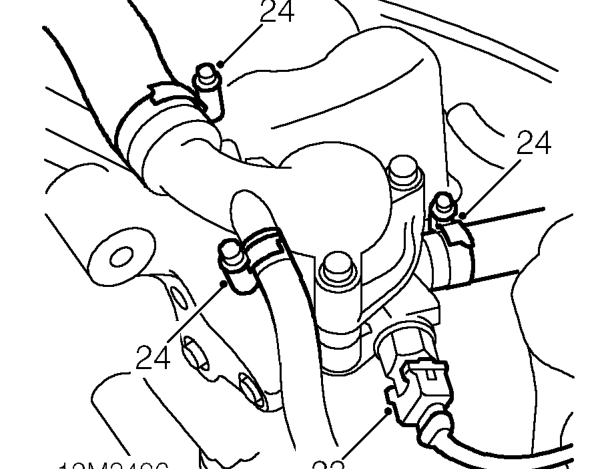

  1. Disconnect multiplug from coolant temperature sensor.
  2. Loosen top hose, expansion hose and heater hose clips and disconnect hoses from thermostat housing.
Loosen top hose, expansion hose and heater hose clips and disconnect hoses from thermostat

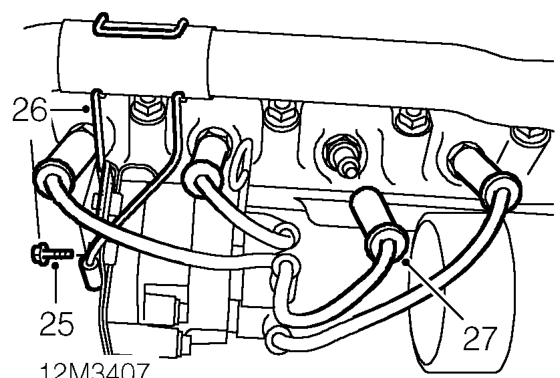

  1. Remove 2 bolts securing top hose support bracket.
  2. Remove support bracket.
  3. Disconnect h.t. leads from spark plugs.
  4. Remove auxiliary drive belt. See ELECTRICAL, Repairs.
