EngineCylinder head gasket · page 2 of 5
Diagram

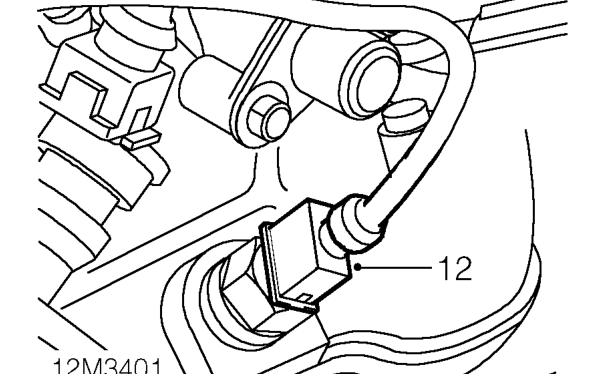

  1. Disconnect multiplug from IAT sensor.
Disconnect multiplug from IAT sensor.

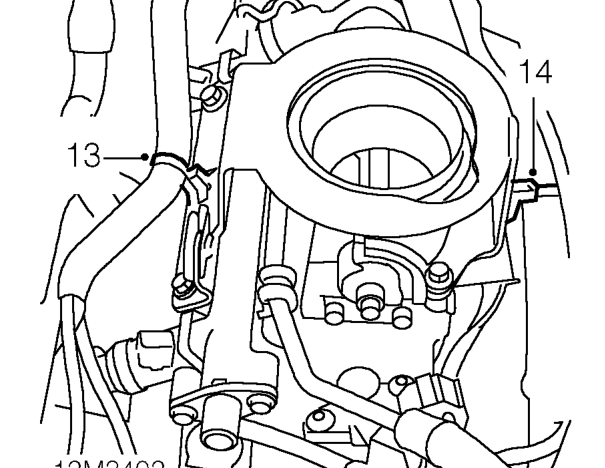

  1. Release clip securing engine harness to air cleaner bracket and move harness clear.
  2. Release harness clip from rear of air cleaner bracket.
Release harness clip from rear of air cleaner bracket.

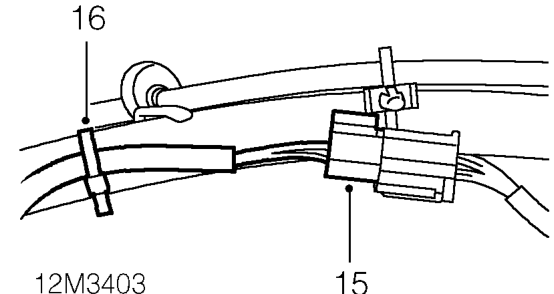

  1. Disconnect HO2S multiplug from harness.
  2. Remove cable tie securing HO2S cable to harness.
  3. Position absorbent cloth around fuel line quick fit connectors.
Position absorbent cloth around fuel line quick fit connectors.

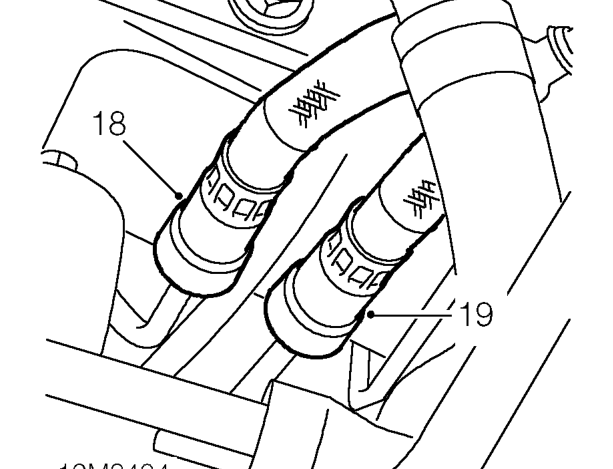

  1. Release quick fit connector and disconnect fuel return hose from fuel pipe.
  2. Release quick fit connector and disconnect fuel feed hose from fuel pipe.

CAUTION: Plug the connections.
