Mini Mini Workshop Manual (1996-2000)04 · Engine
04 · Engine

Engine and gearbox (page 4 of 9)

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs
EngineEngine and gearbox · page 4 of 9
Diagram

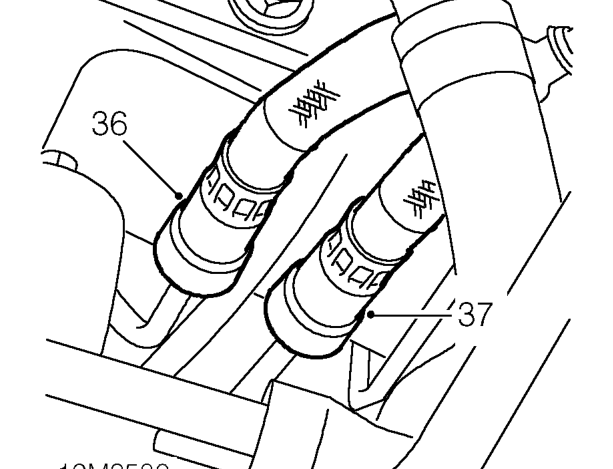

  1. Release quick fit connector and disconnect fuel return hose from fuel pipe.
  2. Release quick fit connector and disconnect fuel feed hose from fuel pipe.
Release quick fit connector and disconnect fuel feed hose from fuel pipe.

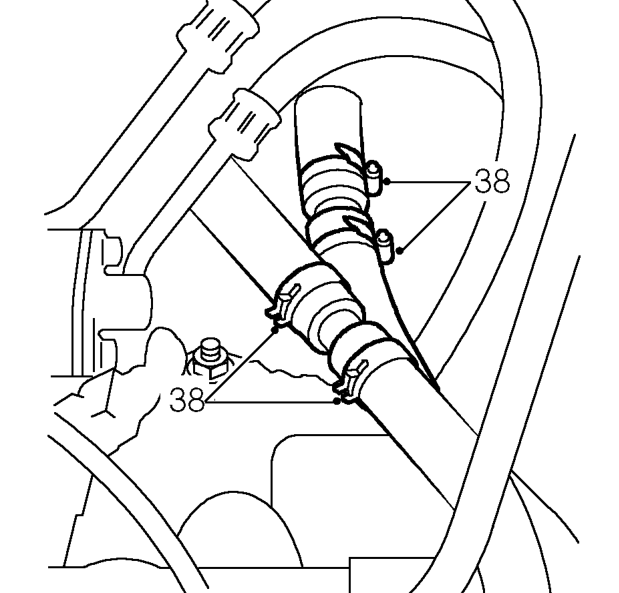

  1. Release clips and disconnect heater hoses.
Release clips and disconnect heater hoses.

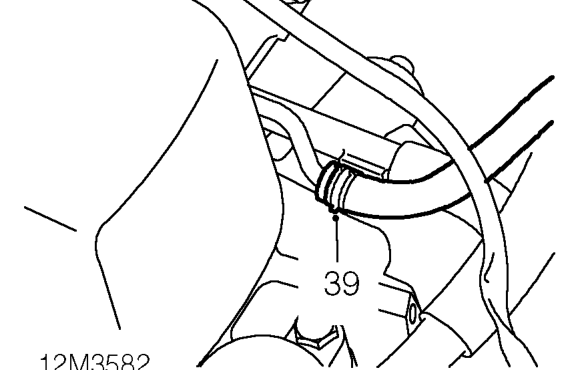

  1. Release clip and disconnect purge hose from pipe.
Release clip and disconnect purge hose from pipe.

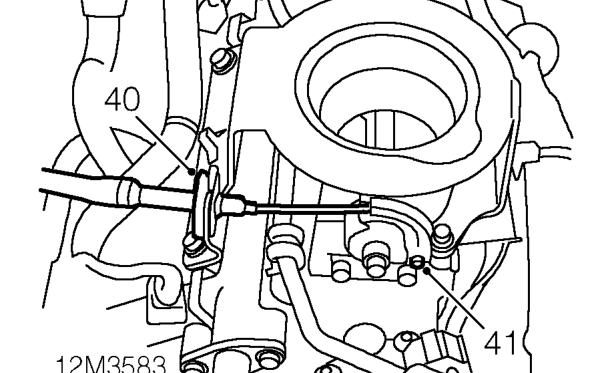

  1. Release throttle cable adjustment nut from abutment bracket.
  2. Disconnect inner cable from throttle cam and position aside.
