Mini Mini Workshop Manual (1996-2000)04 · Engine
04 · Engine

Engine and gearbox (page 3 of 9)

Make
Mini
Model
Mini Workshop Manual
Year
1996–2000
Section
Repairs
EngineEngine and gearbox · page 3 of 9
Diagram

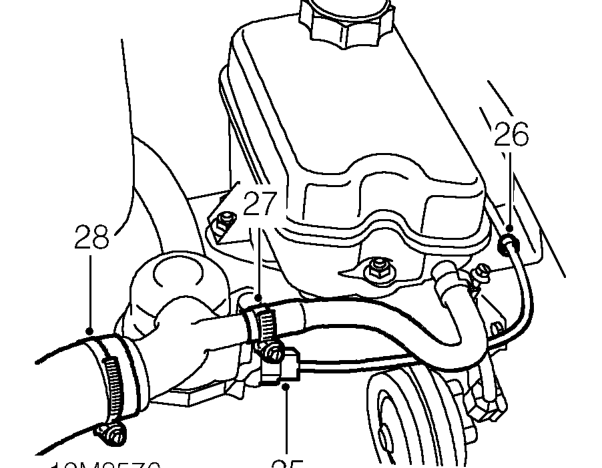

  1. Disconnect multiplug from ECT sensor.
  2. Release clip securing ECT sensor harness to mounting bracket.
  3. Loosen clip and disconnect expansion tank hose from thermostat housing.
  4. Loosen clip and remove radiator top hose from thermostat housing.
Loosen clip and remove radiator top hose from thermostat housing.

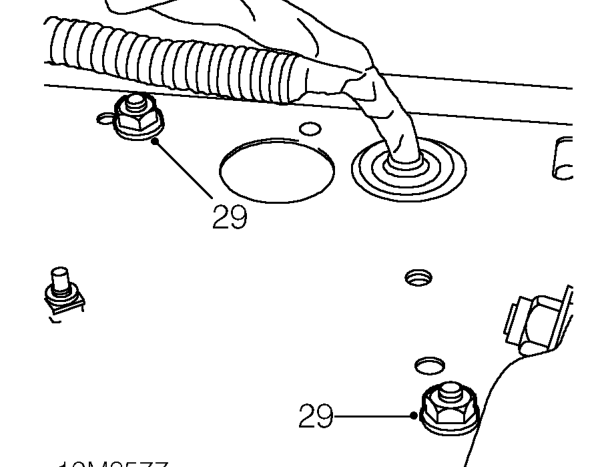

  1. Remove 2 nuts securing coolant expansion tank mounting bracket to body.
  2. Release mounting bracket from body.
Release mounting bracket from body.

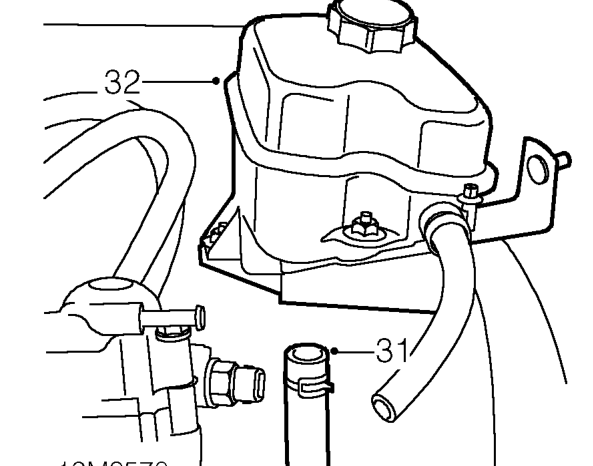

  1. Release clip and disconnect coolant feed hose from expansion tank.
  2. Remove coolant expansion tank and mounting bracket.
Remove coolant expansion tank and mounting bracket.

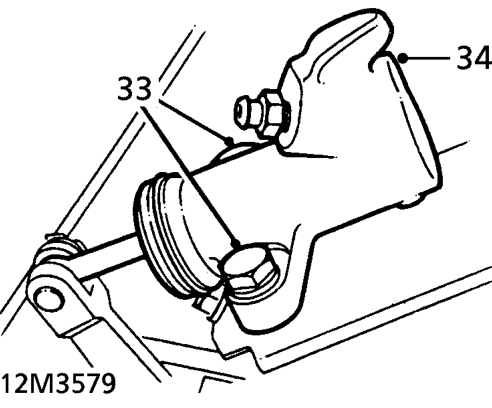

  1. Remove 2 bolts securing clutch slave cylinder to bracket on flywheel housing.
  2. Withdraw slave cylinder from push rod and position aside.
  3. Position absorbent cloth around fuel line quick fit connectors.
