22. Position washer reservoir and tighten screws.
23. Connect washer pump multiplugs.
24. Connect servo pipe to manifold.
25. Connect throttle cable to throttle cam and adjust cable. See ENGINE MANAGEMENT SYSTEM - MEMS, Adjustments.
26. Connect fuel return hose and secure clip.
27. Connect fuel feed hose union to filter and tighten union.
28. Position expansion tank and tighten nuts.
29. Connect heater hoses and tighten clips.
30. Connect expansion tank hose to inlet manifold and secure clip.
31. Connect expansion tank hose and tighten hose clip.
32. Connect top hose and tighten clip.
33. Connect speedo cable.
34. Fit battery feed cable connector to fuse box and fit 30A fuse and fuse box lid.
35. Secure earth leads to body.
36. Secure oxygen sensor relay to bracket. connect multiplugs to inertia switch, relay module, ECM and harness.
37. Secure harness multiplug to bracket.
38. Position air cleaner support bracket and tighten nuts.
39. Position battery tray and charcoal canister assembly, position fuse box bracket, fit bolts and tighten to 9 Nm.
40. Connect charcoal canister hose and secure with clip.
41. Connect ECM vacuum hose to inlet manifold.
42. Secure fuse box to bracket.
43. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
44. Refill gearbox fluid. See REPAIR MANUAL - Maintenance.
45. Refill engine oil. See REPAIR MANUAL - Maintenance.
46. Refill cooling system. See REPAIR MANUAL - Maintenance.
47. Fit bonnet. See REPAIR MANUAL - Body.

CAMSHAFT TIMING BELT UPPER COVER

Service repair no - 12.65.41

Remove

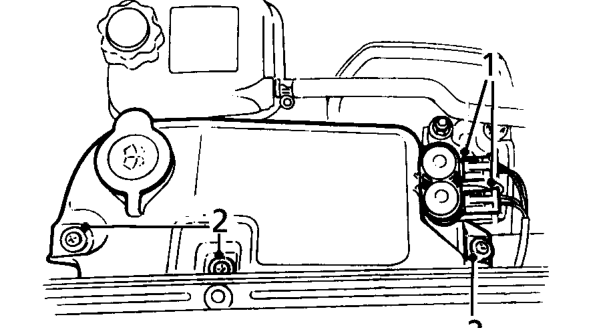

1. Disconnect 2 multiplugs from washer pumps.
2. Remove 3 screws securing washer reservoir to body and move reservoir aside.

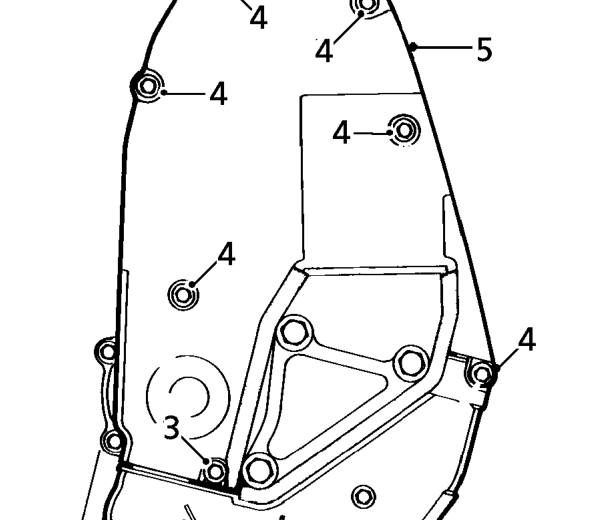

3. Loosen lower bolt securing camshaft timing belt upper cover to engine.
4. Remove 6 bolts securing camshaft timing belt upper cover to rear cover.
5. Remove camshaft timing belt upper cover.
