LOAD FLOOR SIDE

Remove

  1. Disconnect battery earth lead.
  2. Raise rear of vehicle.

WARNING: Place on safety stands.

  1. Disconnect all ECUs.
  2. Disconnect airbags and sensor system.

WARNING: See RESTRAINT SYSTEMS, Precautions.

  1. Disconnect alternator.
  2. Remove all trim items as for rear body assembly, rear quarter assembly and rear inner wheelarch.

Refit

NOTE: In this operation, the load floor side is replaced in combination with a rear body assembly, rear quarter assembly and rear inner wheelarch.

Load floor side – Remove all trim items as for rear body assembly, rear quarter assembly and rear inner whee

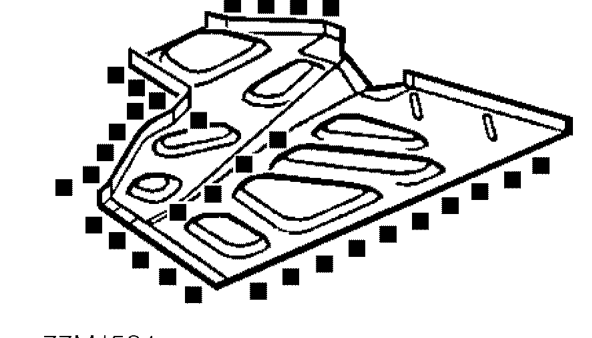

  1. Prepare and clean panel joint faces. Punch or drill holes in new panel for plug welding as shown.

WARNING: Remove ALL traces of adhesive from joints to spare wheel well outer flange and longitudinal upper flange before plug welding.

  1. Refit associated parts.
  2. Reconnect alternator.
  3. Reconnect airbags and sensor system.
  4. Reconnect all ECUs.
  5. Reconnect battery earth lead.
  6. Remove safety stands and lower vehicle.
