Rear inner wheelarch

REAR INNER WHEELARCH

Remove and refit all associated parts as for rear quarter assembly and rear body side in addition to the following items:

1. Child restraints. See BODY, Seats and seat belts.
2. Rear suspension. See Workshop Manual, Rear suspension, Repairs.

NOTE: In this operation, the rear inner wheelarch is replaced in combination with a rear quarter assembly and rear body side.

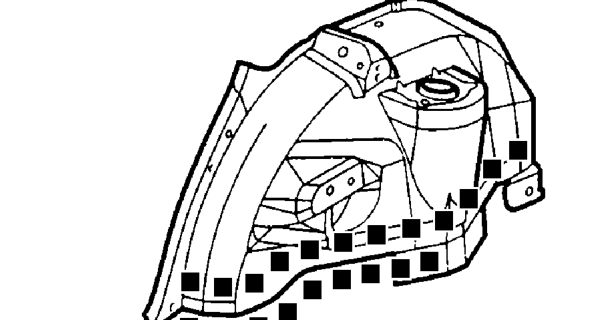

3. Prepare and clean panel joint faces. Punch or drill holes in new panel for plug welding as shown.

WARNING: Remove ALL traces of adhesive from side flanges of spare wheel well and load floor side before plug welding.

4. Refit associated parts.

SPARE WHEEL WELL ASSEMBLY

Remove and refit all associated parts as for rear inner wheelarch, rear quarter assembly and rear body side in addition to the following items:

1. Child restraints. See BODY, Seats and seat belts.
2. Rear suspension. See Workshop Manual, Rear suspension, Repairs.

NOTE: In this operation, the spare wheel well assembly is replaced in combination with a rear inner wheelarch, rear quarter assembly and rear body side.

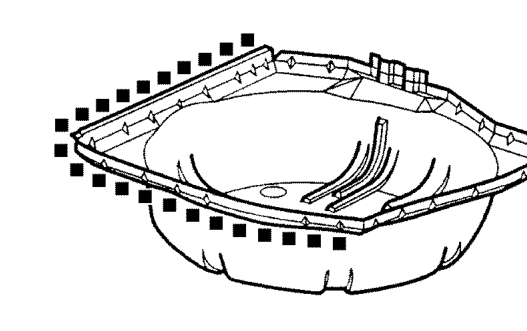

3. Prepare and clean panel joint faces. Punch or drill holes in new panel for plug welding as shown.

WARNING: Remove ALL traces of adhesive from front and side flanges and longitudinal upper flanges, before plug welding.

4. Refit associated parts.
