Panel repairsBrm

BRM

WARNING: Failure to carry out the following procedure can result in the tyre fouling the wheel arch.

Brm

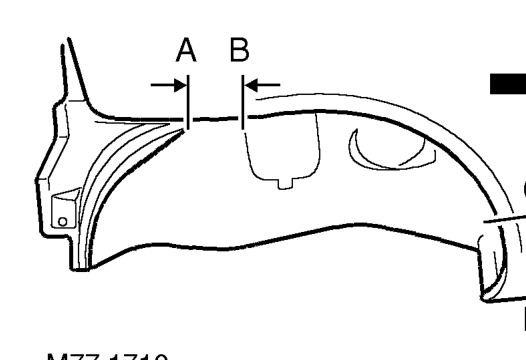

  1. From rear bumper bolt hole in rear quarter panel - point A, measure 100 mm (3.9 in) to Point B, make suitable reference mark using felt tip pen.
  2. From bottom of outer wheel arch - point D, measure 160 mm (6.3 in) to point C, make suitable reference mark using felt tip pen.
Brm – From bottom of outer wheel arch - point D, measure 160 mm (6.3 in) to point C, make suitab

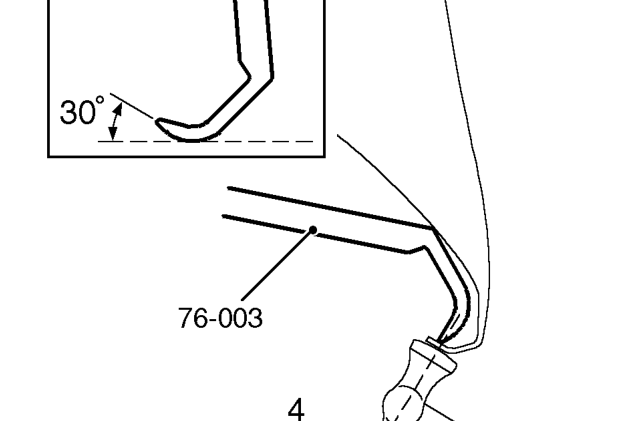

  1. Position tool 76-003 against inner wheel arch at point B and moving between points B and C, progressively dress the outer 5 to 7 mm (0.20 to 0.275 in) of the wheel arch flange upwards until it is approximately 30° from the horizontal.
  2. Fit rear wheel arch liner.
  3. Fit rear road wheel.

All models

  1. Refit door.
  2. Refit fuel tank. See Workshop Manual, Fuel delivery systems, Repairs.
  3. Refit luggage compartment lamp. See Workshop Manual, Electrical, Repairs.
  4. Refit tail lamp. See Workshop Manual, Electrical, Repairs.
  5. Refit parcel tray. See BODY, Interior trim components.
  6. Refit parcel tray support panel. See BODY, Interior trim components.
  7. Refit luggage compartment trim casing. See BODY, Interior trim components.
  8. Refit luggage compartment side carpet. See BODY, Interior trim components.
  9. Refit rear seat squab. See BODY, Interior trim components.
  10. Refit rear seat cushion. See BODY, Interior trim components.
  11. Refit headlining. See BODY, Interior trim components.
  12. Refit rear seat belt. See BODY, Seats and seat belts.
  13. Refit front seat belt and pre-tensioner. See RESTRAINT SYSTEMS, Repairs.
  14. Refit front seat. See BODY, Seats and seat belts.
  15. Refit rear quarter glass. See BODY, Exterior fittings.
  16. Refit rear bumper. See BODY, Exterior fittings.
  17. Refit rear quarter rubbing strip. See BODY, Exterior fittings.
  18. Refit front treadplate. See BODY, Exterior fittings.
  19. Refit rear quarter lower trim casing. See BODY, Interior trim components.
  20. Refit rear quarter trim casing. See BODY, Interior trim components.
  21. Reconnect alternator.
  22. Reconnect airbags and sensor system.
  23. Reconnect all ECUs.
  24. Reconnect battery earth lead.
  25. Remove safety stands and lower vehicle.
