Evaporative emission 2 way valve - ’d’ series

EVAPORATIVE EMISSION 2 WAY VALVE - ’D’ SERIES

Service repair no - 19.55.25

Remove

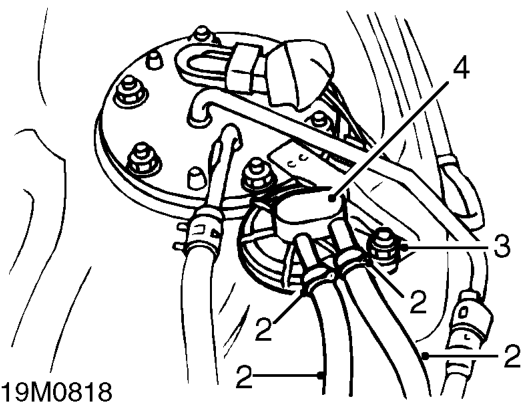

1. Remove fuel tank assembly. See this section.

2. Release 2 clips and disconnect 2 breather hoses from breather valve.
3. Remove nut securing breather valve to mounting bracket.
4. Remove breather valve.

Refit

1. Remove plugs from new breather valve and fit to old.
2. Position breather valve to mounting bracket, fit nut and tighten to 9 Nm.
3. Connect hoses to breather valve and secure with clips.
4. Refit fuel tank assembly. See this section.

FUEL FILTER - ’L’ SERIES

Service repair no - 19.25.02

Remove

1. Disconnect battery earth lead.

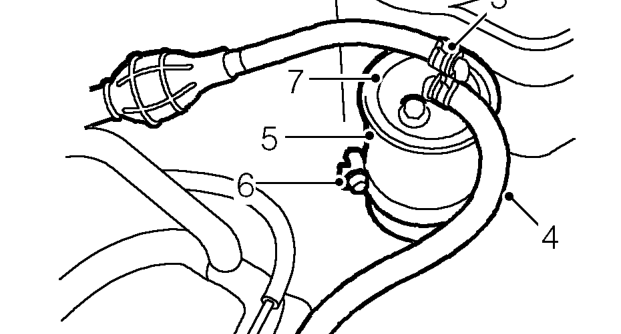

2. Position absorbent cloth beneath fuel filter.

3. Release clip and disconnect fuel inlet hose from filter.
4. Release clip and disconnect fuel outlet hose from filter.

CAUTION: Plug the connections.

5. Remove fuel filter bracket from body mounting.
6. Slacken fuel filter bracket clamp bolt.
7. Remove fuel filter from fuel filter bracket.

Refit

1. Fit fuel filter to fuel filter bracket.
2. Tighten fuel filter bracket clamp bolt.
3. Fit fuel filter bracket to body mounting.
4. Remove plugs from connections.
5. Connect fuel outlet hose to filter and secure clip.
6. Connect fuel inlet hose to filter and secure clip.
7. Slacken bleed screw.
8. Repeatedly squeeze fuel hand primer until fuel, issuing from bleed screw is free from air bubbles; tighten bleed screw.
9. Connect battery earth lead.
10. Remove absorbent cloth.
