Fuel tank - ’d’ series

Refit

1. Using assistance, position fuel tank beneath vehicle and raise into position using a trolley jack.
2. Align fuel tank straps to fuel tank and hook into body.
3. Fit and tighten nuts securing fuel tank straps to body. Tighten locknuts securing fuel tank straps.
4. Ensure fuel tank is properly located and remove trolley jack.
5. Connect fuel feed hose to fuel pipe.
6. Connect fuel breather hose to pipe and secure with clip.
7. Connect fuel return hose to fuel return pipe and secure with clip.
8. Connect filler hose to filler neck and tighten clip.
9. Connect breather hose to filler neck and secure with clip.
10. Connect fuel pump multiplug to harness and secure to bracket on body.
11. Position fuel pipe shield to body, fit bolts and tighten to 9 Nm.
12. Fit 2 scrivets securing fuel pipe shield to body.
13. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
14. Remove stand(s) and lower vehicle.
15. Connect battery earth lead.

FUEL TANK - ’D’ SERIES

Service repair no - 19.55.01

Remove

1. Disconnect battery earth lead.
2. Raise rear of vehicle.

WARNING: Support on safety stands.

3. Drain fuel tank. See Adjustments.
4. Remove LH rear wheel.
5. Disconnect fuel pump harness multiplug.
6. Release multiplug from bracket on body.

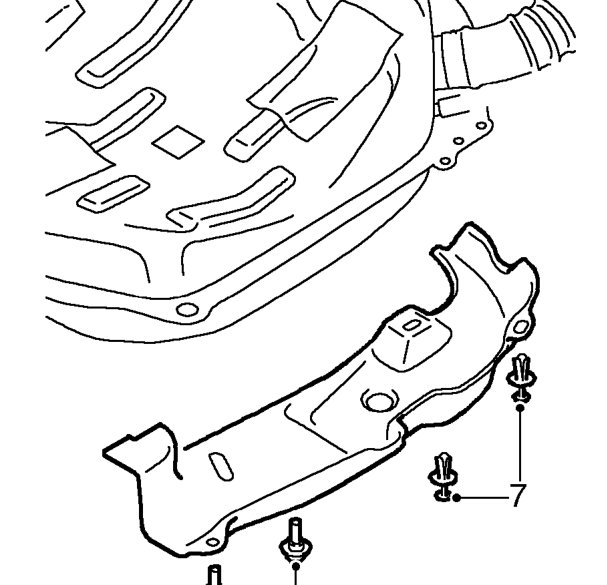

7. Remove 2 screws and 2 scivets securing fuel pipe shield. Remove shield.
