Inertia fuel shut-off switch (page 4 of 4)

Make

Rover

Model

400 Workshop Manual

Year

1995–2000

Section

Repairs

Fuel delivery systemInertia fuel shut-off switch · page 4 of 4

22. Release fuel pump harness from clip on fuel tank.
23. Release clip and disconnect breather hose from fuel tank.

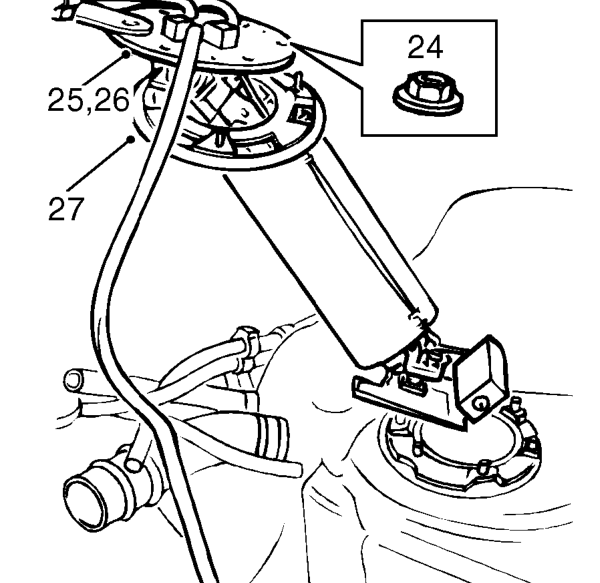

24. Remove 6 nuts securing fuel pump housing to fuel tank.
25. Release fuel pump housing from fuel tank.
26. Remove fuel pump housing from fuel tank.
27. Remove seal from fuel pump housing.

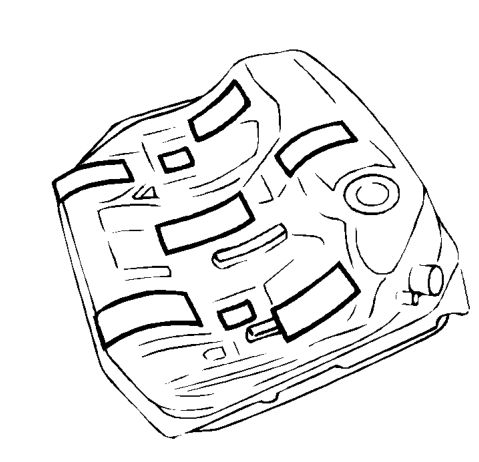

28. Remove rubber pads from old fuel tank, apply adhesive and fit to new tank.
29. Remove harness clip from old fuel tank and fit to new.
30. Clean mating face of fuel pump housing and fuel tank.
31. Clean seal and fit to fuel pump housing.
32. Fit fuel pump housing to fuel tank.
33. Fit nuts securing fuel pump housing to fuel tank and tighten to 9 Nm.
34. Connect breather hose to fuel tank and secure with clip.
35. Secure fuel pump harness to clip on tank.
36. Fit fuel hose bracket to tank and secure with nut.
37. Fit filler hose to fuel tank and tighten clip.
38. Fit breather hose to fuel tank and secure with clip.
