Fuel delivery systemInertia fuel shut-off switch · page 2 of 4

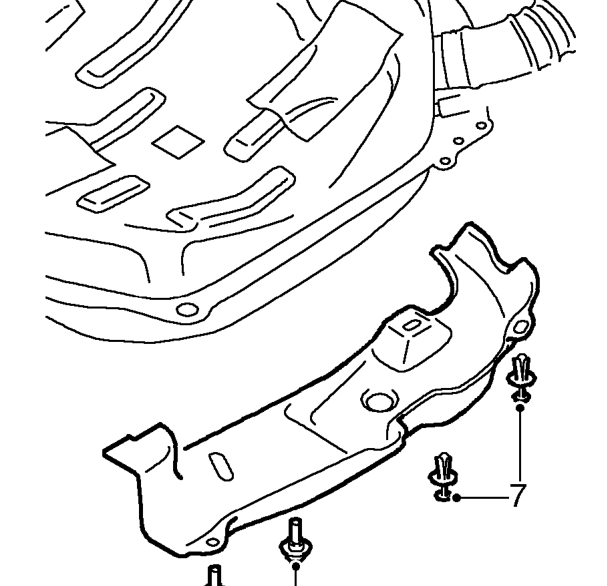

7. Remove 2 screws and 2 scivets securing fuel pipe shield. Remove shield.

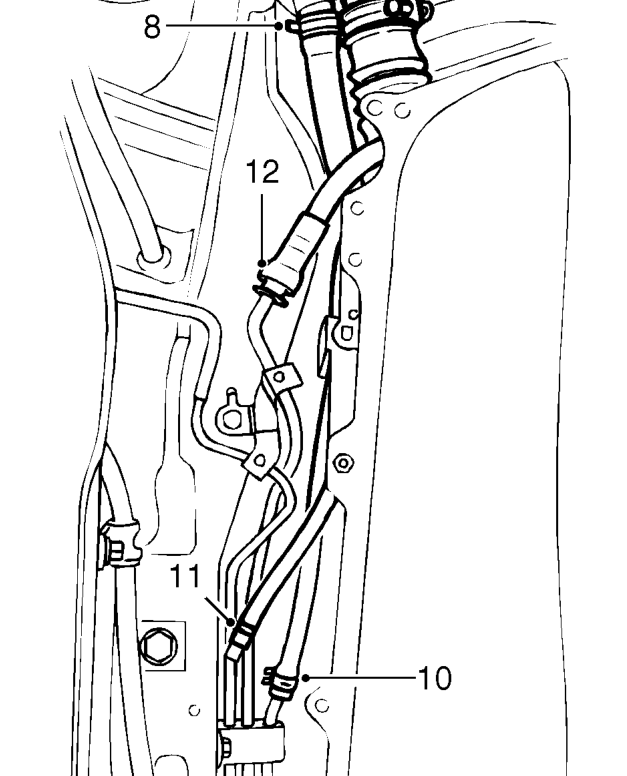

8. Release clip and disconnect breather hose from filler neck.
9. Loosen clip and disconnect filler hose from filler neck.
10. Release clip and disconnect fuel return hose from fuel return pipe.
11. Release clip and disconnect breather hose from pipe.
12. Disconnect fuel feed hose from fuel pipe.
13. Fit wooden block to jack and position jack to support fuel tank.
