FUEL TANK - ’L’ SERIES

Service repair no - 19.55.01

Remove

  1. Disconnect battery earth lead.
  2. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Drain fuel tank. See Adjustments.
  2. Remove LH rear wheel.
Fuel tank - ’l’ series – Remove LH rear wheel.

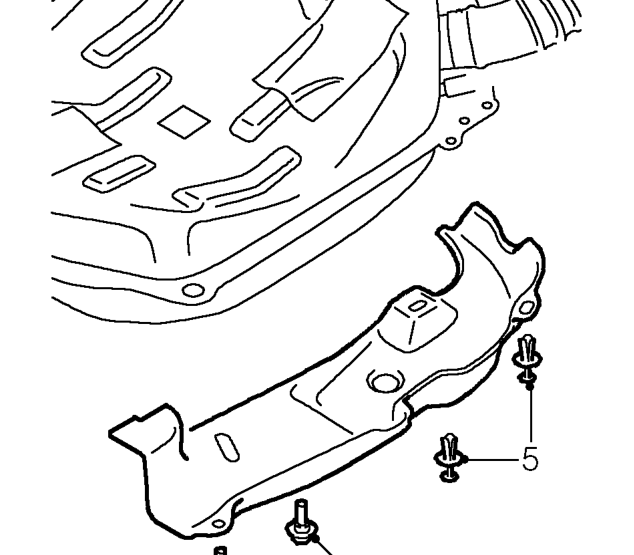

  1. Remove 2 bolts and 2 scrivets from fuel pipe shield, remove shield.
Fuel tank - ’l’ series – Remove 2 bolts and 2 scrivets from fuel pipe shield, remove shield.

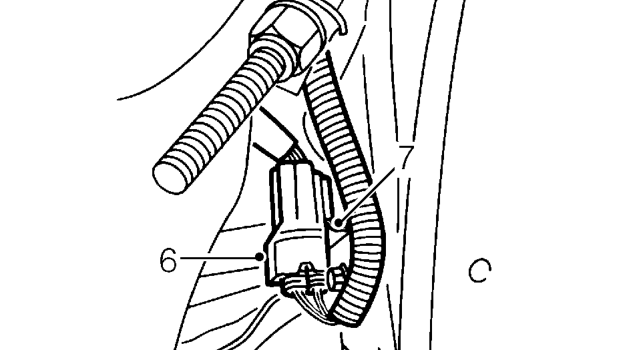

  1. Disconnect fuel pump harness multiplug.
  2. Release multiplug from bracket on body.
Fuel tank - ’l’ series – Release multiplug from bracket on body.

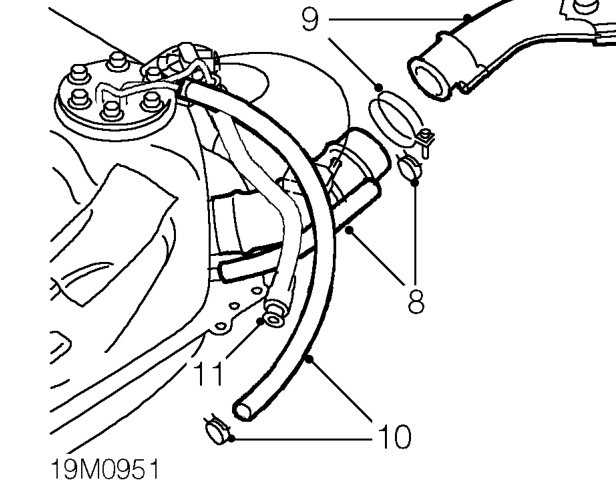

  1. Release clip and disconnect breather hose from filler neck.
  2. Loosen clip and disconnect filler hose from filler neck.
  3. Release clip and disconnect fuel return hose from fuel return pipe.
  4. Disconnect fuel feed hose from fuel pipe.

CAUTION: Plug the connections to prevent the ingress of dirt.

  1. Position wooden block to jack and position jack to support fuel tank.
