Inertia fuel shut-off switch (page 3 of 4)

Make

Rover

Model

400 Workshop Manual

Year

1995–2000

Section

Repairs

Fuel delivery systemInertia fuel shut-off switch · page 3 of 4

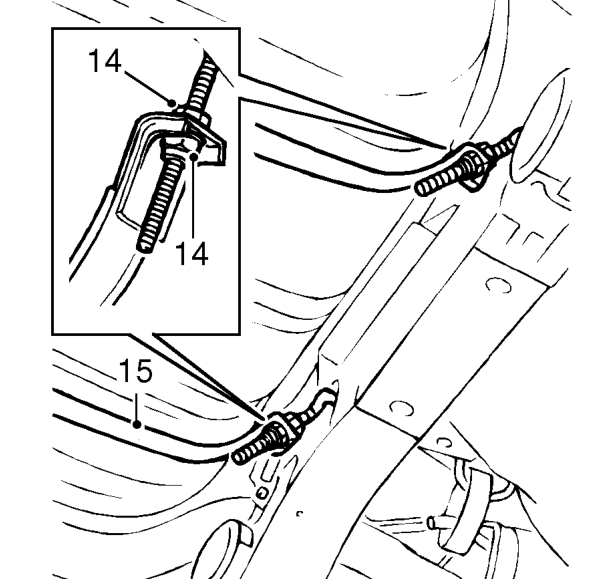

14. Loosen 2 fuel tank strap locknuts and remove 2 tank strap nuts.
15. Release fuel tank straps from vehicle body.
16. Using assistance, release fuel tank from body and lower.
17. Remove fuel tank from beneath vehicle. Do not carry out further dismantling if component is removed for access only.

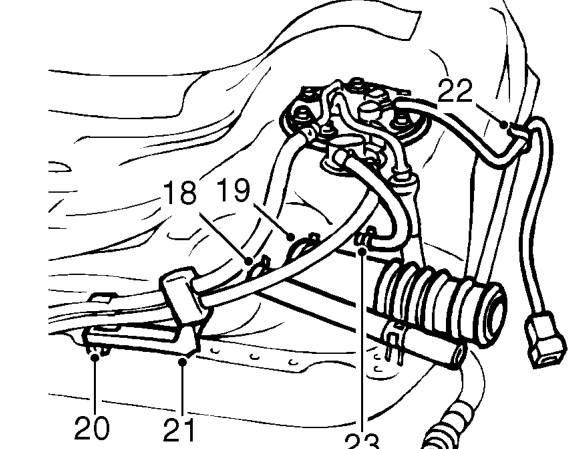

18. Release clip securing breather hose to fuel tank and remove breather hose.
19. Loosen clip securing filler neck hose to fuel tank and remove filler neck hose.
20. Remove nut securing hose bracket to fuel tank.
21. Release hose bracket from fuel tank.
