Fuel delivery systemFuel tank - ’d’ series · page 3 of 4

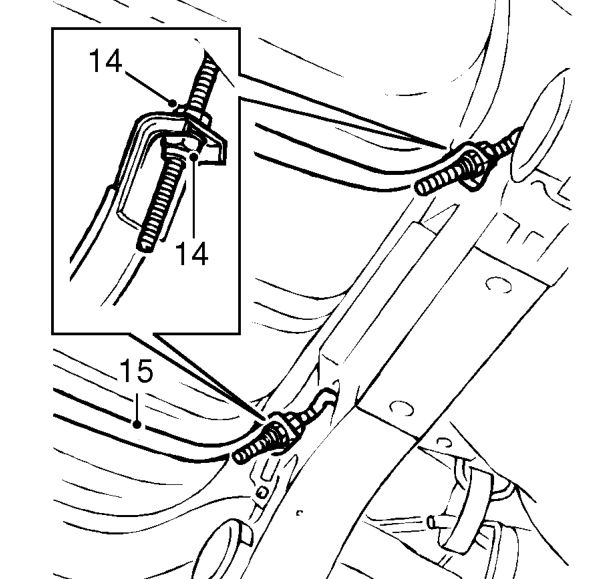

14. Loosen 2 fuel tank strap locknuts and remove 2 tank strap nuts.
15. Release fuel tank straps from body.
16. Using assistance, release fuel tank from body and lower.
17. Remove fuel tank from beneath vehicle. Do not carry out further dismantling if component is removed for access only.

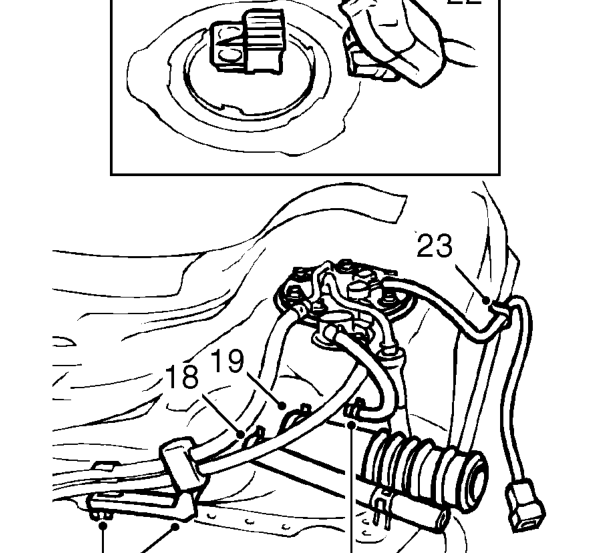

18. Release clip securing breather hose to fuel tank and remove breather hose.
19. Loosen clip securing filler neck hose to fuel tank and remove filler neck hose.
20. Remove securing nut and release hose bracket from fuel tank.
21. Disconnect breather hose from fuel tank.
22. Release cover and disconnect multiplug from fuel gauge tank unit.
23. Release harness from 2 clips on fuel tank.
