Rover 400 Workshop Manual (1995-2000)13 · Fuel delivery system
13 · Engine

Fuel tank - ’d’ series (page 2 of 4)

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs
Fuel delivery systemFuel tank - ’d’ series · page 2 of 4

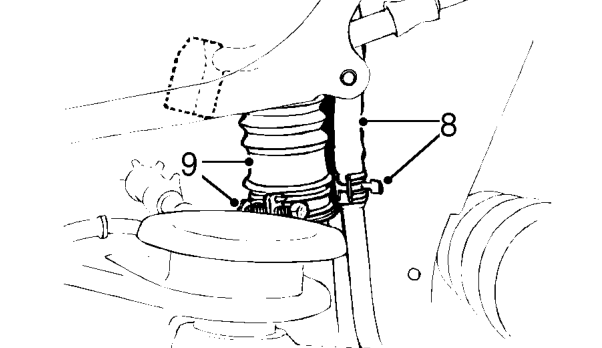

Diagram
  1. Release clip and disconnect breather hose from filler neck.
  2. Loosen clip and disconnect filler hose from filler neck.

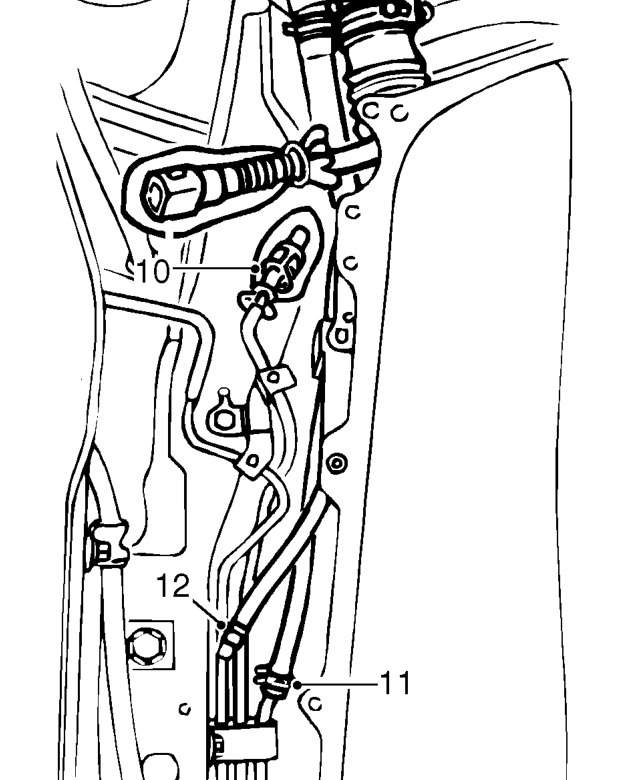

Loosen clip and disconnect filler hose from filler neck.
  1. Whilst holding connector with one hand and squeesing retaining tabs with other hand, disconnect fuel feed hose from fuel feed pipe.

CAUTION: Take care not to damage pipe, protect connectors in plastic bags. DO NOT remove retainer from pipe, if retainer is removed it must be discarded and replaced with a new retainer.

  1. Release clip and disconnect fuel return hose from fuel return pipe.
  2. Release clip and disconnect breather hose from pipe.
  3. Position wooden block to jack and position jack to support fuel tank.
