COOLANT TEMPERATURE GAUGE

Service repair no - 88.25.14

Remove

  1. Remove instrument pack. See this section.

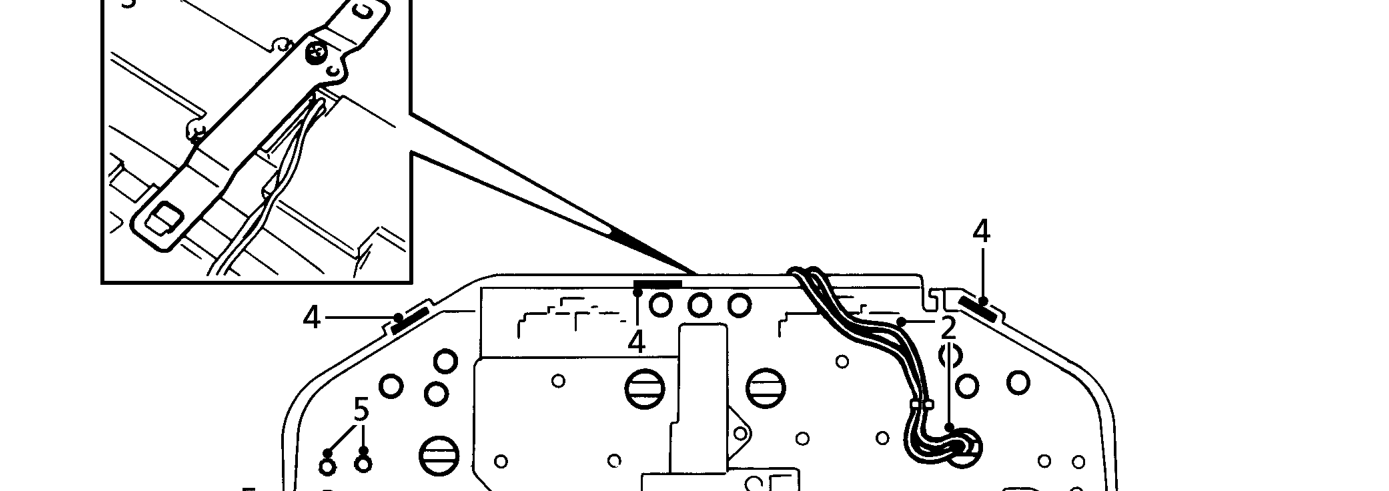

Coolant temperature gauge – Remove instrument pack. See this section.
  1. Release illumination bulb and lead from instrument housing.
  2. Remove screw and support bracket from housing.
  3. Release 5 clips securing face plate to housing and remove face plate.
  4. Remove 3 screws and remove temperature gauge.

Refit

  1. Fit gauge and secure with screws.
  2. Fit face plate to housing. Secure lead and fit illumination bulb.
  3. Fit support bracket and tighten screw.
  4. Fit instrument pack. See this section.
