InstrumentsFuel gauge tank unit - ’k’ series

FUEL GAUGE TANK UNIT - ’K’ SERIES

Service repair no - 88.25.32

NOTE: The fuel gauge tank unit and fuel pump are integral parts of the fuel pump housing and cannot be renewed separately. See FUEL DELIVERY SYSTEM, Repairs.

FUEL GAUGE TANK UNIT - ’D’ SERIES

Service repair no - 88.25.32

Remove

  1. Disconnect battery earth lead.
Fuel gauge tank unit - ’d’ series – Disconnect battery earth lead.

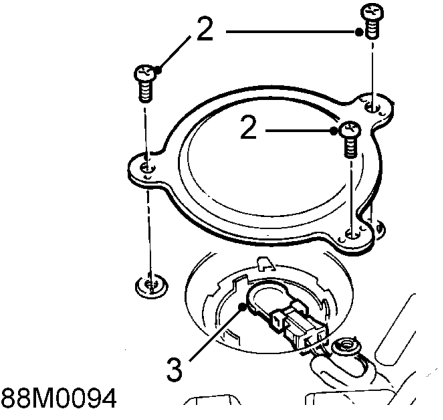

  1. Remove boot carpet. Remove 3 screws and remove access cover.
  2. Pull back rubber cover from tank unit and disconnect multiplug.
Fuel gauge tank unit - ’d’ series – Pull back rubber cover from tank unit and disconnect multiplug.

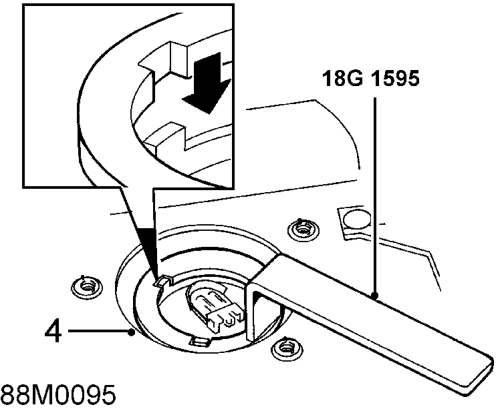

  1. Use tool 18G 1595 and remove locking ring from tank unit.
