Workshop Manuals Factory service & repair Rover
Rover 400 Workshop Manual (1995-2000)31 · Instruments
31 · Electrical

Tachometer

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Tachometer
InstrumentsTachometer

TACHOMETER

Service repair no - 88.30.21

Remove

  1. Remove instrument pack. See this section.

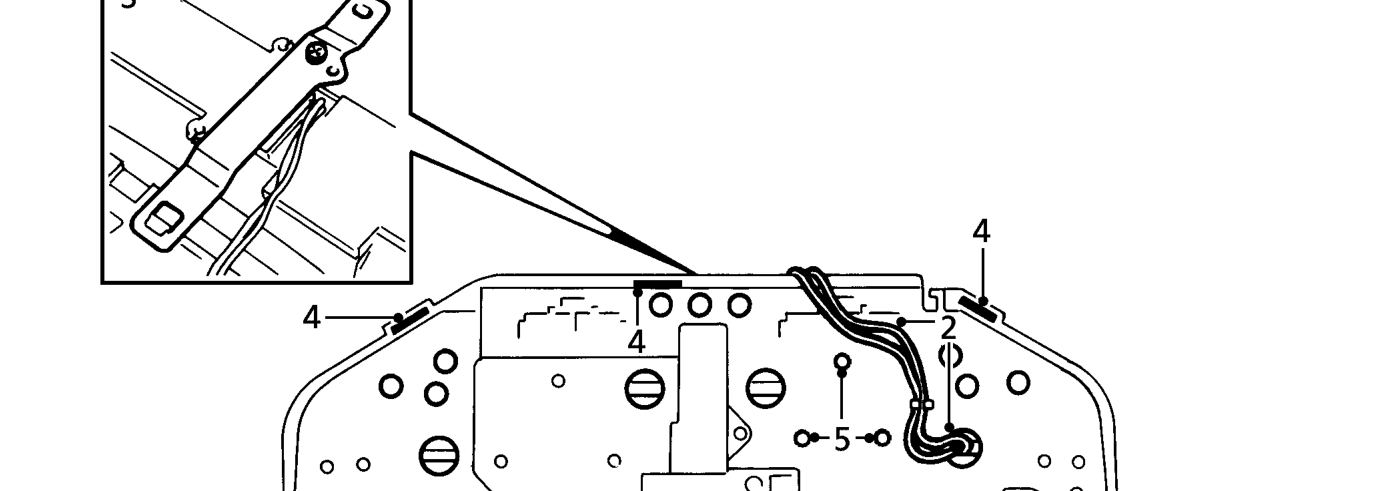

Tachometer – Remove instrument pack. See this section.
  1. Release illumination bulb and lead from instrument housing.
  2. Remove screw and support bracket from housing.
  3. Release 5 clips securing face plate to housing and remove face plate.
  4. Remove 3 screws and remove tachometer.
  5. Fit tachometer and secure with screws.
  6. Fit face plate to housing. Secure lead and illumination bulb.
  7. Fit support bracket and tighten screw.
  8. Fit instrument pack. See this section.
