Vehicle speed sensor - ’d’ series

Refit

1. Fit and tighten vehicle speed sensor to speedometer drive pinion housing.
2. Clean mating faces of gearbox and speedometer drive pinion housing.
3. Lubricate with gearbox oil and fit new ’O’ ring to speedometer drive pinion housing.
4. Fit speedometer drive pinion housing to gearbox and align bolt holes.
5. Fit bolt securing speedometer drive pinion housing to gearbox and tighten to 9 Nm.
6. Connect multiplug to vehicle speed sensor.
7. Top-up gearbox oil level. See MAINTENANCEMaintenance.
8. Remove container.
9. Lower vehicle.
10. Connect battery earth lead.

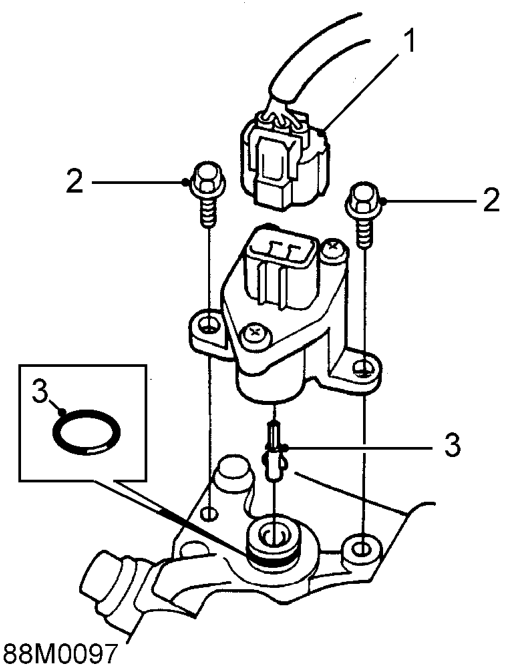

VEHICLE SPEED SENSOR - ’D’ SERIES

Service repair no - 88.30.14

1. Disconnect multiplug from speed sensor.
2. Remove 2 bolts and remove sensor.
3. Remove ’O’ ring and drive link.

Refit

1. Clean sensor and mating face on gearbox.
2. Fit ’O’ ring and drive link.
3. Fit sensor and tighten bolts to 8 Nm.
4. Connect multiplug to sensor.
