Rover 400 Workshop Manual (1995-2000)31 · Instruments
31 · Electrical

Engine coolant temperature gauge sensor - ’k’ series

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Engine coolant temperature gauge sensor - ’k’ series
InstrumentsEngine coolant temperature gauge sensor - ’k’ series

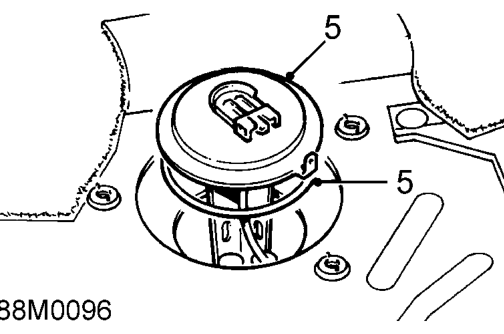

Diagram
  1. Remove fuel gauge tank unit and remove sealing ring.

Refit

  1. Clean tank unit and mating face on fuel tank.

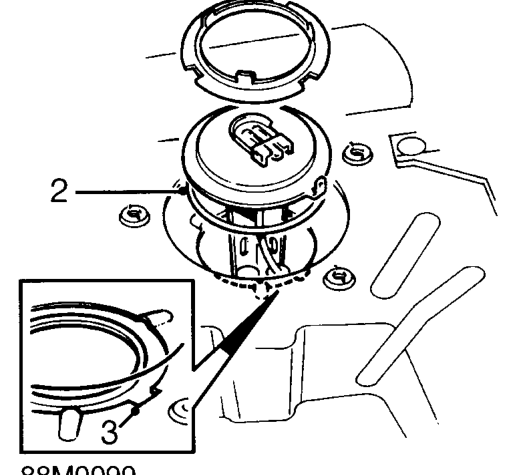

Clean tank unit and mating face on fuel tank.
  1. Fit seal to tank unit.
  2. Fit tank unit and secure with locking ring.

NOTE: Tag on tank unit to engage in cut out in fuel tank.

  1. Connect multiplug and fit rubber cover.
  2. Fit access cover and secure with screws.
  3. Fit boot floor carpet.
  4. Connect battery earth lead.

ENGINE COOLANT TEMPERATURE GAUGE SENSOR - ’K’ SERIES

Service repair no - 88.25.20

Remove

  1. Disconnect battery earth lead.

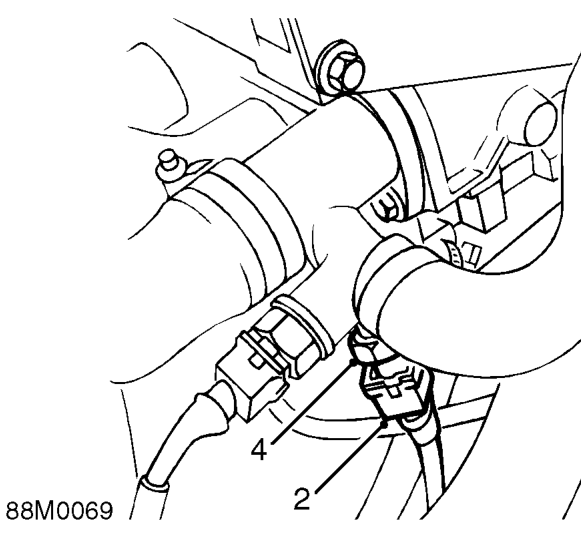

Engine coolant temperature gauge sensor - ’k’ series – Disconnect battery earth lead.
  1. Disconnect multiplug from engine coolant temperature gauge sensor.
  2. Position container below sensor to collect coolant spillage.
  3. Remove engine coolant temperature gauge sensor.

Refit

  1. Clean threads of engine coolant temperature gauge sensor.
  2. Apply Loctite 577 to threads of engine coolant temperature gauge sensor.
  3. Fit engine coolant temperature gauge sensor and tighten to 10 Nm.
  4. Connect multiplug to engine coolant temperature gauge sensor.
  5. Connect battery earth lead.
  6. Top-up coolant. See MAINTENANCEMaintenance.
