INSTRUMENT PACK

Service repair no - 88.20.01/99

Remove

  1. Release clamp and lower steering column.
Instrument pack – Release clamp and lower steering column.

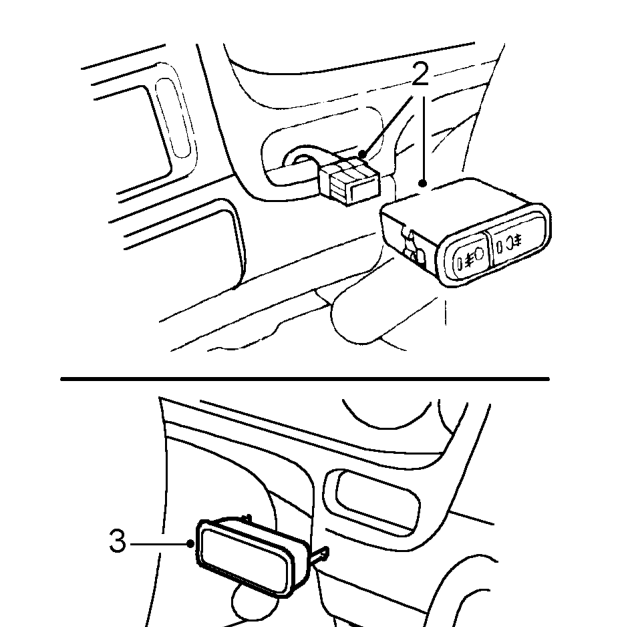

  1. Release fog guard switch from instrument surround and disconnect multiplug.
  2. Remove switch blank from instrument surround.
Instrument pack – Remove switch blank from instrument surround.

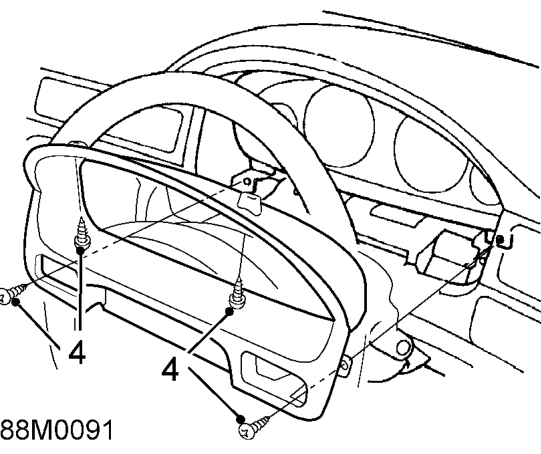

  1. Remove 4 screws and remove instrument surround.
Instrument pack – Remove 4 screws and remove instrument surround.

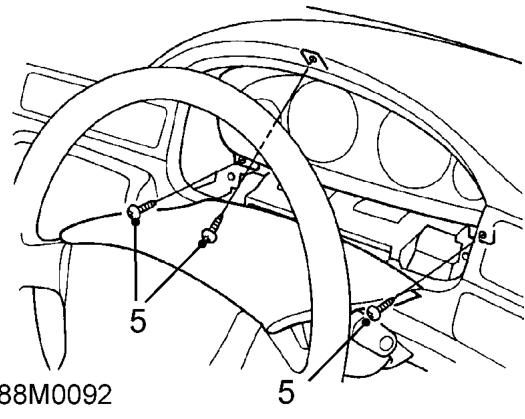

  1. Remove 3 screws and pull instrument pack from fascia for access to connections.
Instrument pack – Remove 3 screws and pull instrument pack from fascia for access to connections.

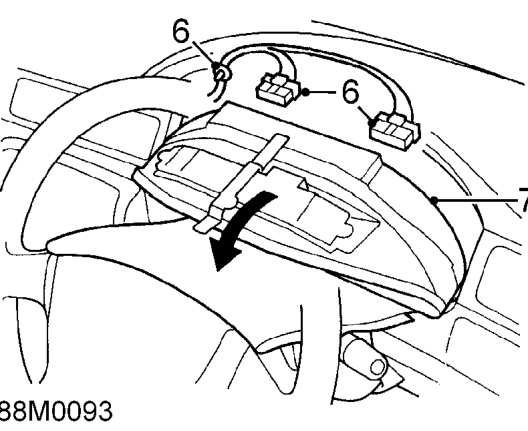

  1. Disconnect 2 multiplugs, the SRS warning bulb holder if fitted and remove harness clip from rear of instrument pack.
  2. Remove instrument pack.

Refit

  1. Fit instrument pack.
  2. Connect multiplugs, the SRS warning bulb holder if fitted and secure harness clip to rear of instrument pack.
  3. Position instrument pack into fascia and fit screws.
  4. Fit instrument surround and secure with screws.
  5. Fit switch blank.
  6. Position fog guard switch, connect multiplug and secure switch to surround.
