InstrumentsEngine coolant temperature gauge sensor - ’d’ series

ENGINE COOLANT TEMPERATURE GAUGE SENSOR - ’D’ SERIES

Service repair no - 88.25.20

Remove

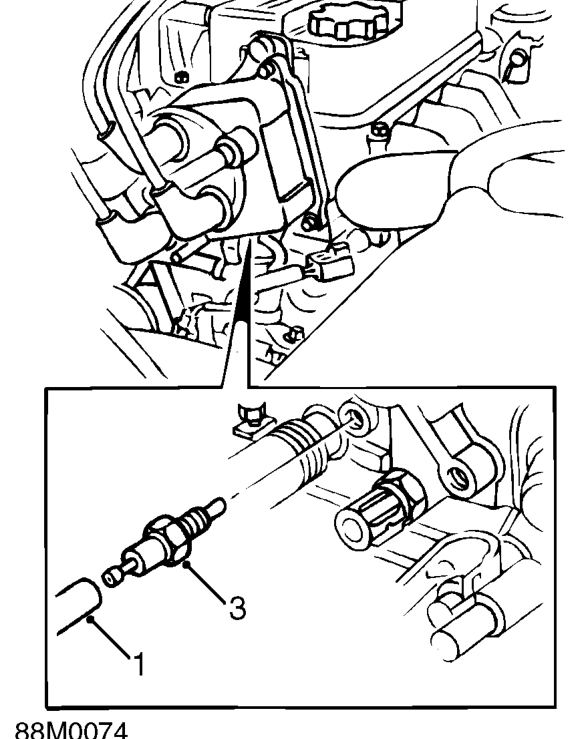

Engine coolant temperature gauge sensor - ’d’ series – Service repair no - 88.25.20
  1. Disconnect lead from engine coolant temperature gauge sensor.
  2. Position container below sensor to collect coolant spillage.
  3. Remove engine coolant temperature gauge sensor.

Refit

  1. Clean threads of engine coolant temperature gauge sensor.
  2. Apply Loctite 577 to threads of engine coolant temperature gauge sensor.
  3. Fit engine coolant temperature gauge sensor and tighten to 10 Nm.
  4. Connect lead to engine coolant temperature gauge sensor.
  5. Connect battery earth lead.
  6. Top-up coolant. See MAINTENANCEMaintenance.

VEHICLE SPEED SENSOR - ’K’ SERIES

Service repair no - 88.30.14

Remove

  1. Disconnect battery earth lead.
  2. Raise vehicle on a four post ramp.

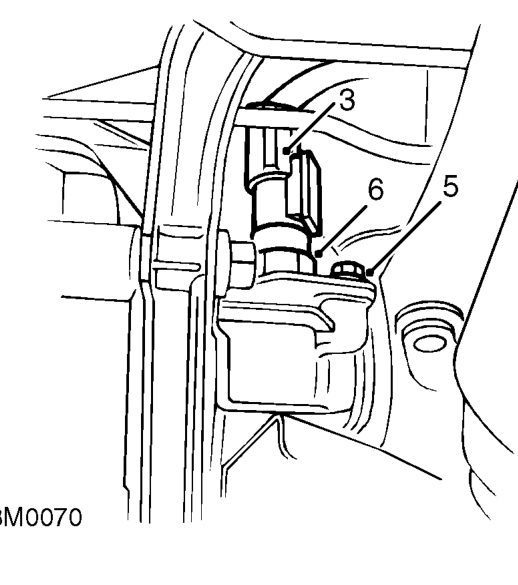

Vehicle speed sensor - ’k’ series – Raise vehicle on a four post ramp.
  1. Disconnect multiplug from vehicle speed sensor.
  2. Position container beneath sensor to collect any oil spillage.
  3. Remove bolt securing speedometer drive pinion housing to gearbox.
  4. Release speedometer drive pinion housing from gearbox.
  5. Remove speedometer drive pinion housing.

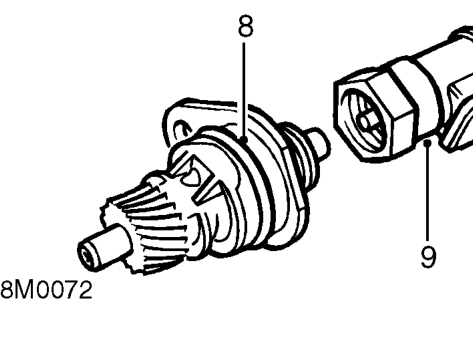

Vehicle speed sensor - ’k’ series – Remove speedometer drive pinion housing.
  1. Remove and discard ’O’ ring from speedometer drive pinion housing.
  2. Remove vehicle speed sensor.
