Engine remove: repairs › Remove
EngineRemove · page 1 of 7

Remove

WARNING: Support on safety stands.

  1. Secure the bonnet as far open as possible.
  2. Disconnect the battery negative terminal first, then the positive terminal.
  3. Remove the radiator cap.

WARNING: Use care when removing the radiator cap to avoid scalding by hot coolant or steam.

  1. Raise the hoist to full height.

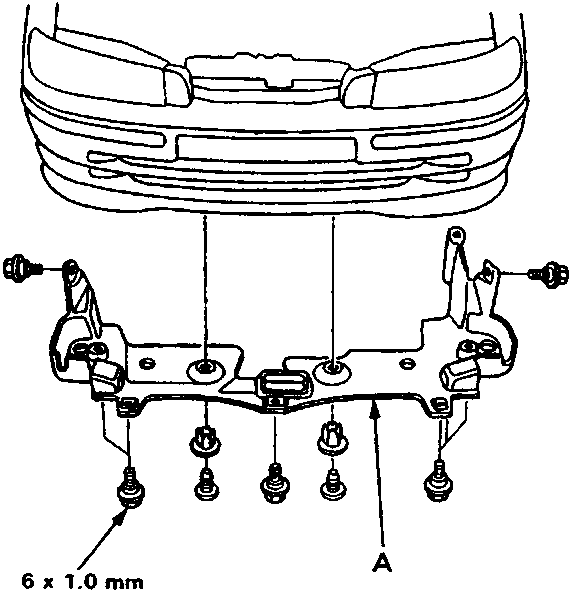

Diagram of engine splash shield with bolts and label A

A Engine splash shield

  1. Remove the front wheels and the engine splash shield.
  2. Loosen the drain plug from the radiator.
  3. Drain the gearbox oil or fluid. Reinstall the drain plug using a new washer, then lower the hoist.

CAUTION: Do not over tighten the drain bolt.

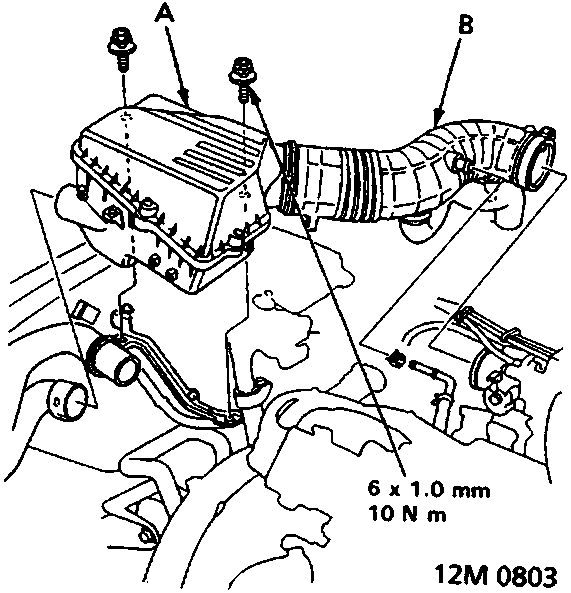

Diagram of air cleaner and intake air duct with labels A and B

A Air cleaner
B Intake air duct

  1. Remove the intake air duct and air cleaner.

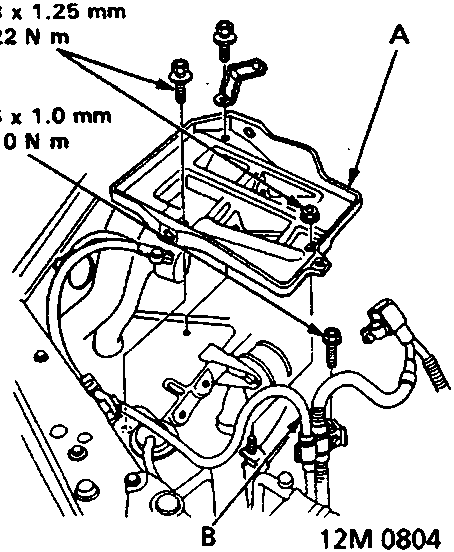

Diagram of battery base and battery cable with labels A and B

A Battery base
B Battery cable

  1. Remove the battery, battery base and battery cable.
