Engine remove: repairs
EngineRemove · page 4 of 7

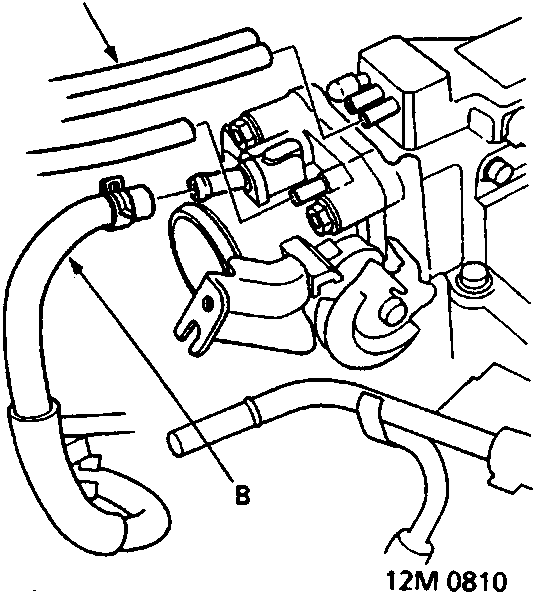

Diagram showing emission control vacuum tubes and evaporator control canister hose connections on the intake manifold

A Emission control vacuum tubes

B Evaporator control canister hose

  1. Remove the evaporator emission control canister hose and emission control vacuum tubes from the intake manifold.

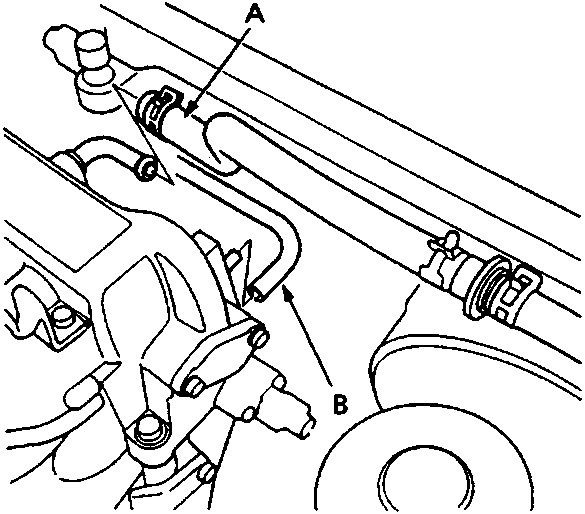

Diagram showing brake booster vacuum hose and engine mount control vacuum tube connections on the intake manifold

A Brake booster vacuum hose

B Engine mount control vacuum tube (A/T only)

  1. Remove the brake booster vacuum hose and engine mount control vacuum tube (A/T only) from the intake manifold.

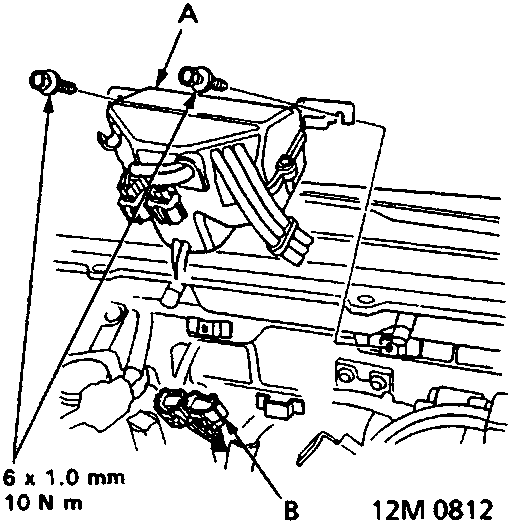

Diagram showing emission control box removal, indicating 6 x 1.0 mm bolts at 10 N m torque and connector locations

A Emission control box

B Connectors

  1. Remove the connectors and the emission control box.
  2. Remove the engine earth cable on the cylinder head.
