REAR DEMISTER BLOWER – CABRIOLET

Service Repair No. 80.15.55

Remove

  1. Release rear seat squab catches and fold rear squabs forward.

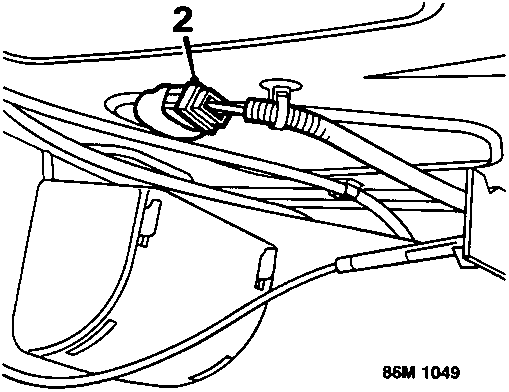

Diagram showing the demister blower fly-lead multiplug connection on the underside of the rear shelf, callout 2.
  1. Disconnect multiplug from demister blower fly – lead (RH underside of rear shelf).

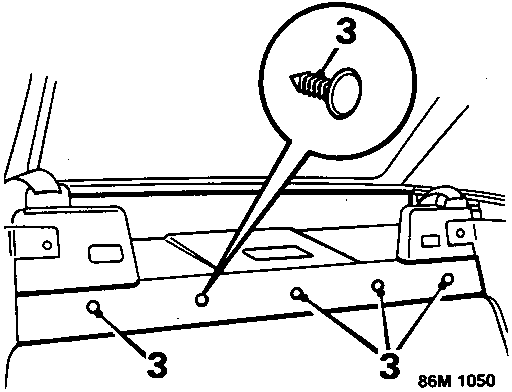

Diagram showing the fixing studs on the forward edge of the rear shelf trim, callouts 3.
  1. Remove 5 fixing studs from forward edge of rear shelf trim.

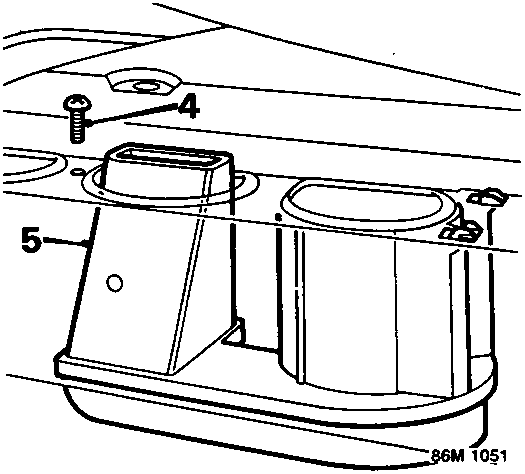

Diagram showing the rear shelf trim lifted to reveal the blower assembly securing screw (callout 4) and the demister blower assembly (callout 5).
  1. Lift rear shelf trim and remove blower assembly securing screw.
  2. Unhook and remove demister blower assembly

Refit

  1. Locate demister blower assembly and secure with screw.
  2. Route fly – lead over rear shelf and connect multiplug.
  3. Fit rear shelf trim fixing studs and return squabs to upright position.
