Heating and ventilationRemove

Service Repair No. 80.20.29

Remove

  1. Remove heater assembly.

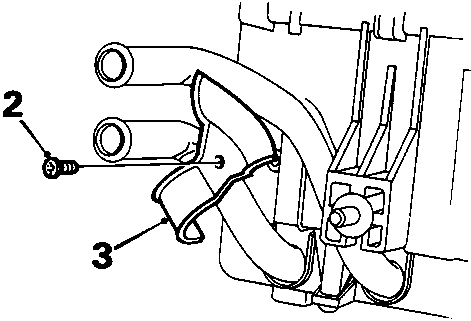

Diagram showing heater pipe bracket with callout numbers 2 and 3

8RM 1111

  1. Remove screw securing heater pipe bracket.
  2. Remove bracket.

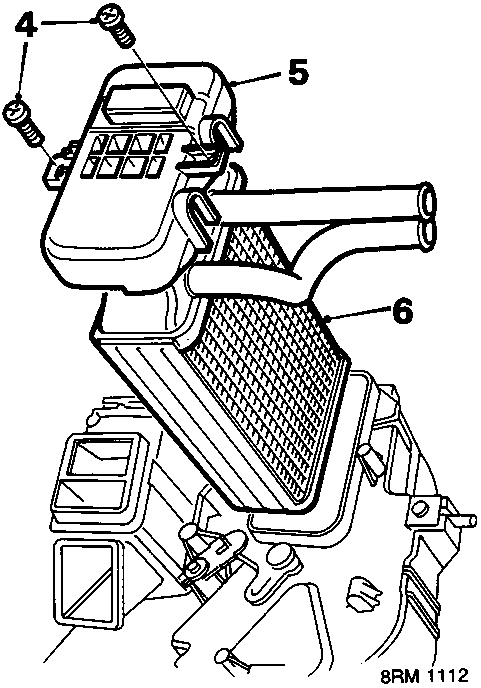

Diagram showing matrix cover and matrix assembly with callout numbers 5 and 6

8RM 1112

  1. Remove 2 screws securing matrix cover.
  2. Remove matrix cover.
  3. Remove matrix.

Refit

  1. Refit matrix into heater.
  2. Position matrix cover.
  3. Fit and tighten 2 matrix cover securing screws.
  4. Position heater pipe bracket.
  5. Fit and tighten bracket securing screw.
  6. Refit heater assembly.

HEATER VALVE

Service Repair No. 80.10.16

Remove

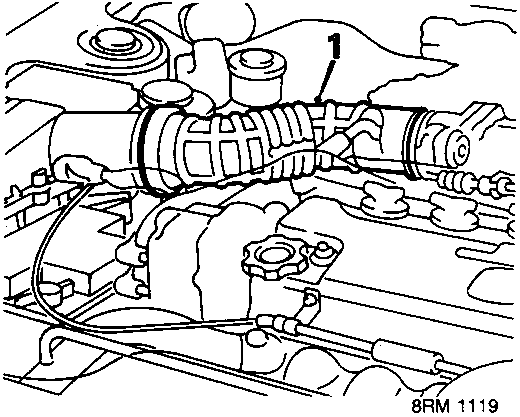

Diagram showing air intake hose connection with callout number 1

8RM 1119

  1. 1.6 models: Remove air intake hose.

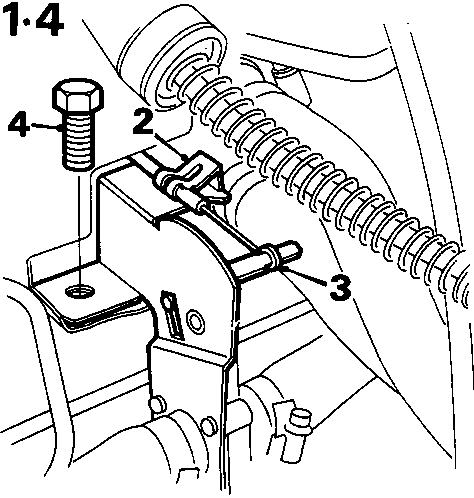

Diagram showing outer heater valve cable clip and inner cable release with callout numbers 2, 3, and 4

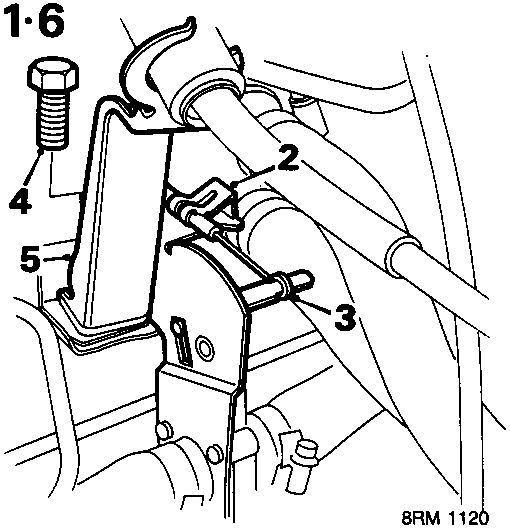

Diagram showing heater valve mounting bracket and bolts with callout numbers 2, 3, 4, and 5

8RM 1120

  1. Release clip securing outer heater valve cable.
  2. Release inner cable from heater valve.
