Heating and ventilationRemove

Service Repair No. 80.10.17

Remove

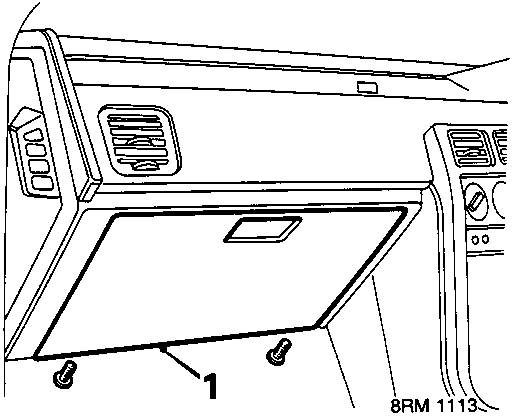

Diagram showing the glove box lid and front console area with callout number 1
  1. Remove glove box lid, see BODY – Repairs.
  2. Remove radio, see ELECTRICAL – Repairs.
  3. Remove front console, see BODY – Repairs.

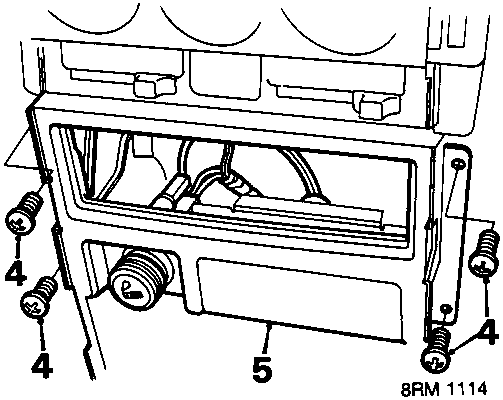

Diagram showing the radio housing area with callout numbers 4 and 5
  1. Remove 4 screws securing radio housing.
  2. Move radio housing forward.
  3. Disconnect multiplug from cigar lighter.
  4. Remove bulb holders from cigar lighter and ash tray.
  5. Remove radio housing.

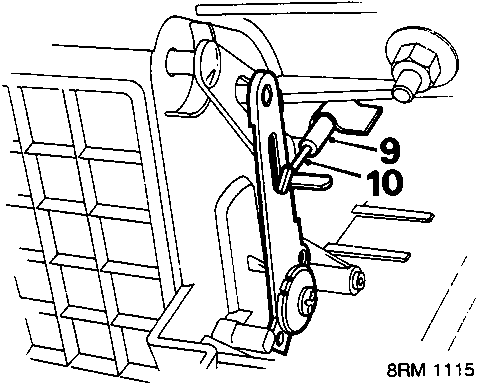

Diagram showing the blower housing area with callout numbers 9 and 10
  1. Release outer cable from clip on blower housing.
  2. Disconnect inner cable from blower flap lever.

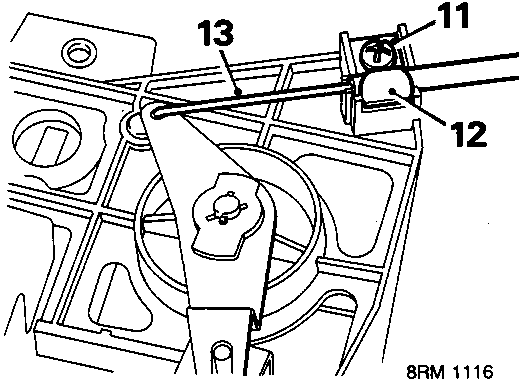

Diagram showing the heater control area with callout numbers 11, 12, and 13
  1. Remove screw securing clip under heater controls.
  2. Remove clip.
  3. Disconnect inner cable from control lever.
  4. Remove cable.

Refit

  1. Position cable.
  2. Connect inner cable to control lever.
  3. Secure outer cable to abutment bracket.
  4. Position outer cable clip under heater controls
  5. Fit and tighten clip screw.
  6. Move air flap to closed position.
  7. Connect inner cable to flap lever.
  8. With flap in closed position and recirculation control in recirculation position secure outer cable into clip.
  9. Check operation of cable.
  10. Position radio housing.
  11. Secure bulb holders to cigar lighter and ash tray.
  12. Connect multiplug to cigar lighter.
  13. Position radio housing to fascia.
  14. Fit and tighten 4 radio housing screws.
  15. Refit front console, see BODY – Repairs.
  16. Refit radio, see ELECTRICAL – Repairs.
  17. Refit glove box lid, see BODY – Repairs.
