Heating and ventilationRefit
  1. Remove bolt securing heater valve and, on 1.6 models, clutch cable steady bracket to bulkhead.
  2. Place steady bracket aside.

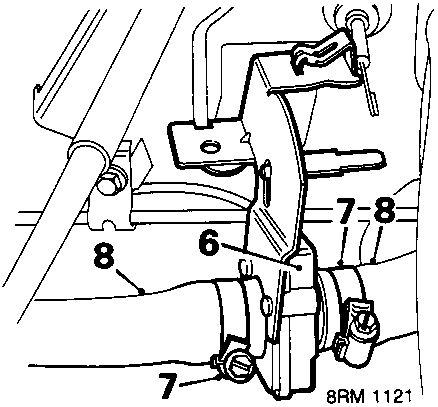

Diagram showing heater valve assembly with callout numbers 6, 7, and 8
  1. Release heater valve from bracket.
  2. Slacken 2 hose clips.
  3. Disconnect 2 hoses from heater valve.
  4. Remove heater valve.

Refit

  1. Position heater valve.
  2. Connect 2 hoses.
  3. Align 2 hose clips.
  4. Tighten 2 hose clips.
  5. Position heater valve to bracket and on 1.6 models, align clutch cable steady bracket to bulkhead.
  6. Fit and tighten bolt.
  7. Connect inner cable to heater valve.
  8. Set heater control inside car to off position.
  9. Set valve to off position.
  10. Set outer cable and secure with clip.
  11. Check control for full movement.
  12. Refill cooling system, see MAINTENANCE
  13. 1.6 models: Refit air intake hose.

HEATER VALVE – 2.0

Service Repair No. 80.10.16

Remove

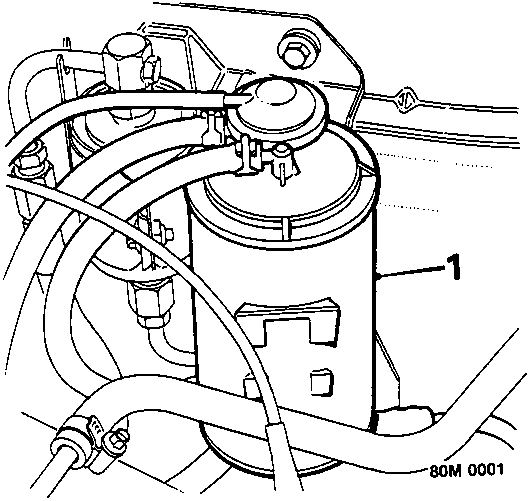

Diagram showing charcoal canister and heater valve area with callout number 1
  1. Release charcoal canister from mounting bracket and move aside.
  2. Position container beneath heater valve.

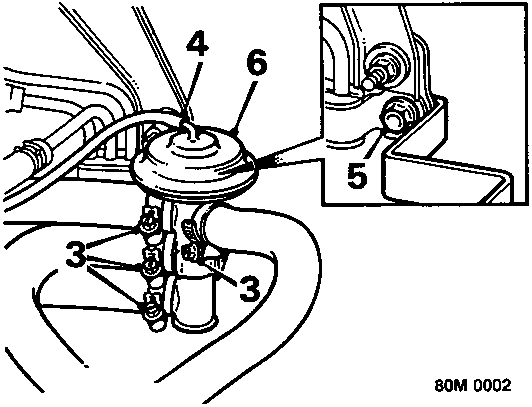

Diagram showing heater valve connections with callout numbers 3, 4, 5, and 6
  1. Slacken clips, disconnect 4 coolant hoses from heater valve.
  2. Disconnect vacuum pipe from heater valve.
  3. Remove bolt securing heater valve mounting bracket to bulkhead.
  4. Release heater valve from mounting bracket.

Refit

  1. Position heater valve to mounting bracket.
  2. Position mounting bracket to bulkhead, fit and tighten bolt.
  3. Connect coolant hoses, tighten clips.
  4. Connect vacuum pipe.
  5. Secure charcoal canister in mounting bracket.
  6. Top – up cooling system, see MAINTENANCE
