Heating and ventilationRemove

Service Repair No. 80.20.01

Remove

  1. Remove facia assembly, see BODY – Repairs.
  2. Position drain tray to catch coolant.

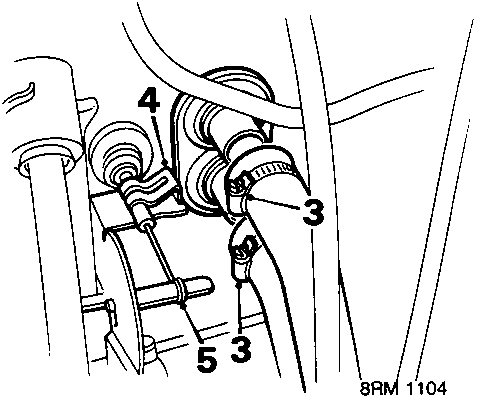

Diagram showing heater hose clips and valve cable connections with callout numbers 3, 4, and 5
  1. Slacken 2 heater hose clips and disconnect heater hoses.
  2. Remove heater valve outer cable clip.
  3. Disconnect cable from heater valve.

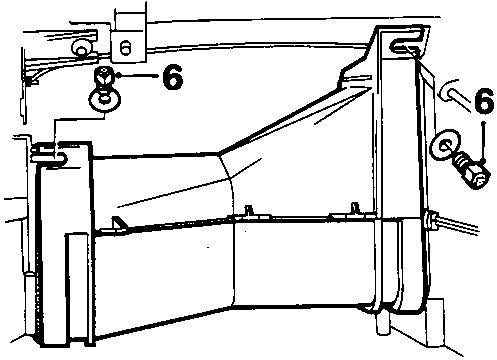

Diagram showing heater duct secured by bolts with callout number 6
  1. Remove 2 bolts securing heater duct and remove heater duct

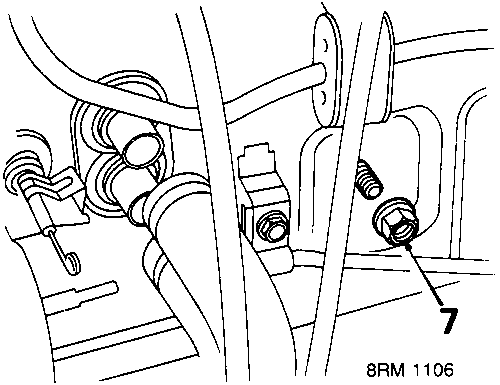

Diagram showing heater lower mounting nut with callout number 7
  1. Remove heater lower mounting nut.

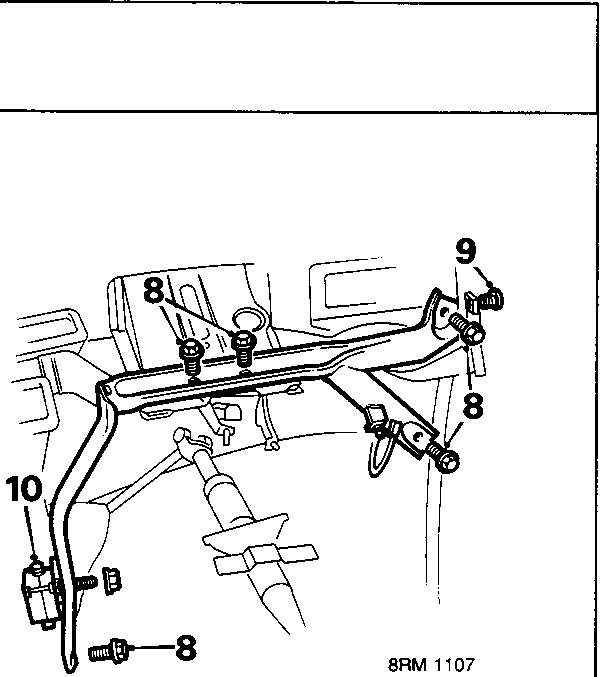

Diagram showing steering column bracket and R.H. heater duct with callout numbers 8, 9, and 10
  1. Remove 5 bolts securing steering column bracket.
  2. Remove screw securing R.H. heater duct.
  3. Remove inertia switch, see FUEL DELIVERY SYSTEM – Repairs.
  4. Release multiplug clipped to bracket.
  5. Remove steering column bracket.

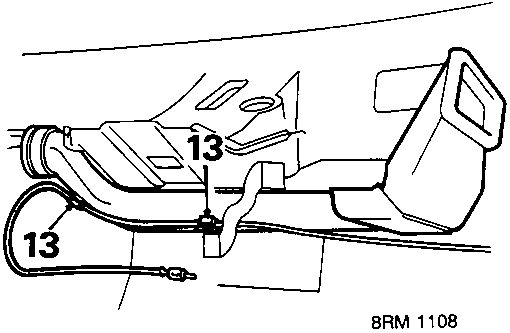

Diagram showing radio aerial clipped to R.H. heater duct with callout number 13
  1. Release radio aerial clipped to R.H. heater duct. and remove duct.
  2. Disconnect 2 wiring clips from heater.

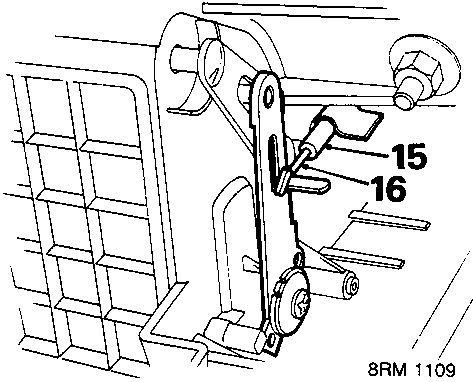

Diagram showing recirculation cables on blower housing with callout numbers 15 and 16
  1. Disconnect recirculation outer cable from clip on blower housing.
  2. Release recirculation inner cable from flap lever.
