Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual23 · Heating and ventilation
23 · Heating & A/C

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
Heating and ventilationRemove

Service Repair No. 80.20.15

Remove

  1. Remove blower assembly.

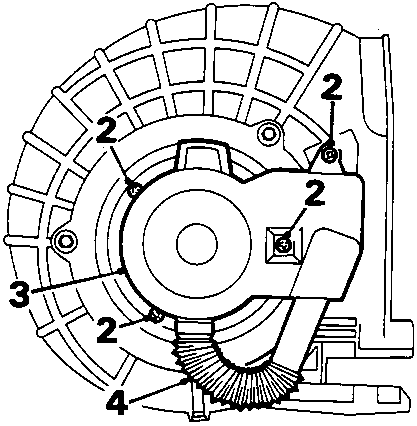

Diagram of blower assembly showing numbered components 2, 3, and 4
  1. Remove 4 screws securing blower motor cover.
  2. Remove blower motor cover.
  3. Disconnect breather hose.

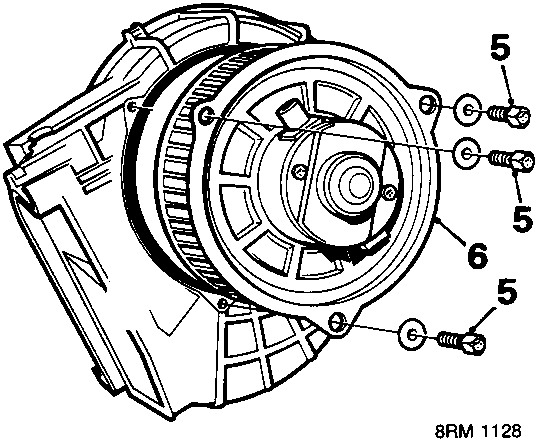

Diagram of blower motor assembly showing numbered components 5 and 6
  1. Remove 3 screws securing blower motor.
  2. Remove blower motor assembly.

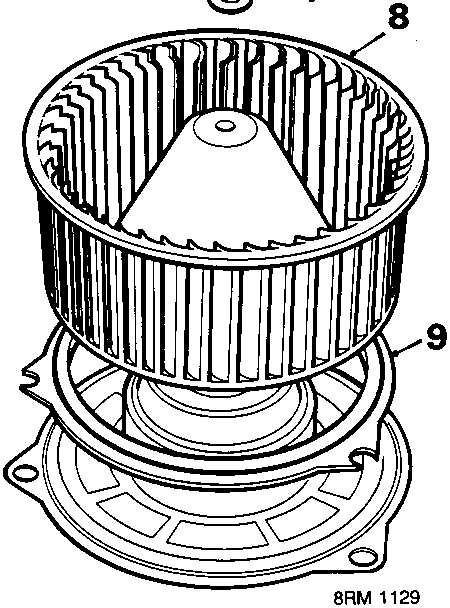

Diagram of blower fan assembly showing numbered components 7, 8, and 9
  1. Remove nut securing fan.
  2. Remove fan.
  3. Remove blower motor seal.

Refit

  1. Position seal to blower motor plate.
  2. Fit fan to blower motor shaft.
  3. Fit and tighten fan securing nut.
  4. Fit motor assembly into blower housing.
  5. Fit and tighten 3 blower motor securing screws
  6. Connect breather hose.
  7. Fit blower motor cover.
  8. Fit and tighten 4 cover securing screws
  9. Refit blower assembly.
