Heating and ventilationRefit

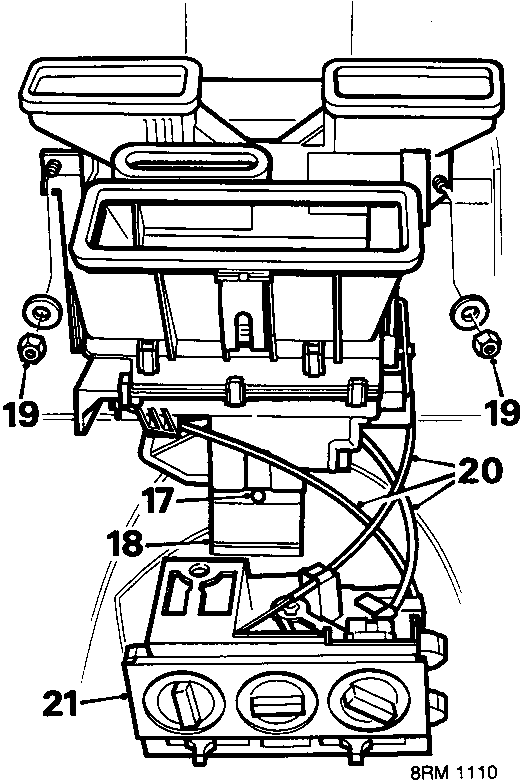

Diagram of heater assembly showing numbered callouts 17, 18, 19, 20, and 21 pointing to various components including ducts, control panel, and cables.

Note: 1.4 Models – hoses may be smeared with rubber grease to assist fitting.

  1. Remove stud securing sleeve to rear heater ducts.
  2. Slide sleeve from heater into rear ducts for access for heater removal.
  3. Remove 2 top nuts securing heater and remove heater assembly.
  4. Disconnect the three heater control cables.
  5. Remove the control panel.

Refit

  1. Position heater control panel and connect control cables.
  2. Operate control levers and check for smooth operation.
  3. Position heater to body.
  4. Locate pipes through body grommet and locate heater onto fixing studs.
  5. Fit and tighten 2 upper nuts.
  6. Fit lower heater mounting nut and tighten to 21 Nm.
  7. Slide sleeve from rear ducts into heater and fit sleeve securing stud.
  8. Position recirculation cable to blower unit and connect inner cable to blower flap.
  9. Slide recirculation control lever to recirculation position and while holding flap in upper (closed) position secure outer cable into clip on blower housing.
  10. Check operation of recirculation cable.
  11. Secure 2 harness clips into heater.
  12. Position R.H. heater duct.
  13. Secure aerial lead into 2 clips.
  14. Position steering column bracket.
  15. Fit and tighten 5 bolts securing steering column bracket.
  16. Fit inertia switch see FUEL DELIVERY SYSTEM – Repairs.
  17. Align R.H. heater duct to bracket, fit and tighten screw.
  18. Align heater duct to heater and blower, fit and tighten 2 bolts.
  19. Position heater valve cable through bulkhead and secure inner cable to valve.
  20. Rotate temperature control to hot position.
  21. Place valve in open position and position outer cable into clamp.
  22. Check operation of temperature control.
  23. Connect 2 heater hoses.
  24. Align and tighten 2 hose clips.
  25. Refit fascia, see BODY – Repairs.
  26. Refill cooling system, see MAINTENANCE.
