Supplementary restraint system (SRS)Caution: · page 1 of 2

WARNING: Ensure tool SMD 4082/1 is not connected to battery.

  1. Secure airbag module to tool SMD 4082/2. Ensure module is correctly secured using both fixings.
  2. Ensure airbag module mounting brackets are secure.
Car headlight assembly with mounting brackets and wiring

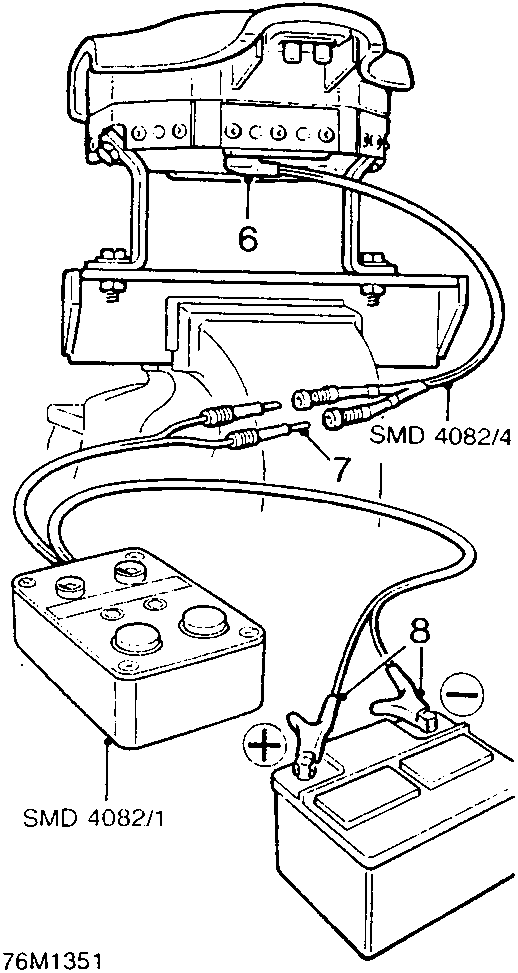

Diagram showing airbag module mounted on a stand with fly lead SMD 4082/4 connecting to tool SMD 4082/1 attached to a battery
  1. Connect fly lead SMD 4082/4 to airbag module.
  2. Connect fly lead SMD 4082/4 to tool SMD 4082/1.

WARNING: Do not lean over module whilst connecting.

  1. Connect tool SMD 4082/1 to battery.

WARNING: Ensure all personnel are standing at least 15 metres away from module.

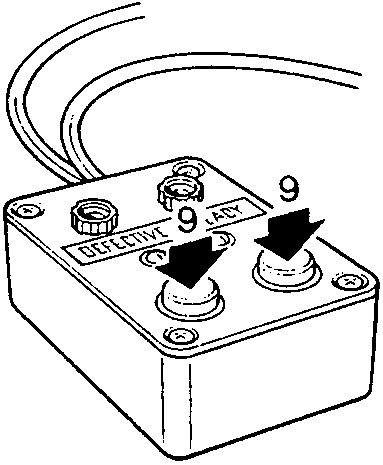

Close-up of tool SMD 4082/1 showing two operating buttons labeled DEFECTIVE and ARM being pressed by arrows
  1. Press both operating buttons to deploy airbag module.
  2. DO NOT return to airbag module for 30 minutes.

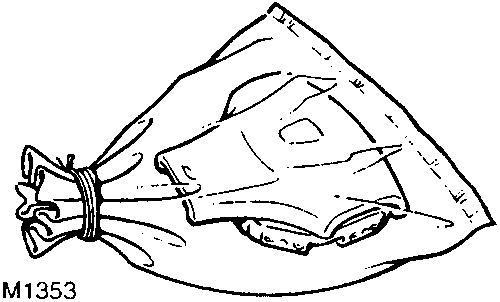

Deployed airbag module placed inside a sealed plastic bag ready for disposal
  1. Dispose of the complete airbag assembly. No part of it can be reused. Place it in a sturdy plastic bag and seal it securely.

CAUTION:

  • Wear a face shield and gloves when handling a deployed airbag.
  • Wash your hands and rinse them well with water after handling a deployed airbag.
  1. Wipe down tool with damp cloth.
  2. Transport deployed airbag module to designated area for incineration.

Note: DO NOT transport airbag module in the vehicle passenger compartment.

  1. Scrap all remaining parts of airbag system. DO NOT re-use or salvage any parts of the airbag system including steering wheel or steering column.
