Supplementary restraint system (SRS)Refit

CAUTION: Do not allow slip ring to hang by its SRS harness.

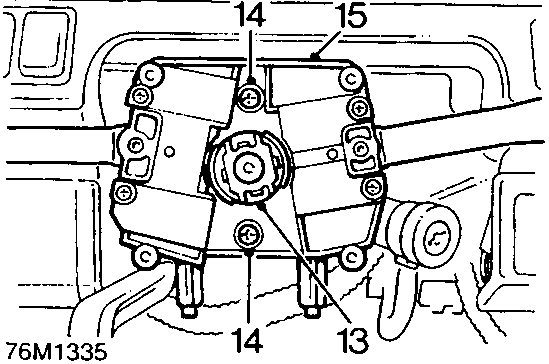

Diagram of steering column switch assembly showing components 13, 14, and 15
  1. Remove indicator cancelling cam.
  2. Remove 2 screws securing column switch assembly to steering column.
  3. Remove column switch assembly.

Do not carry out further dismantling if component is removed for access only

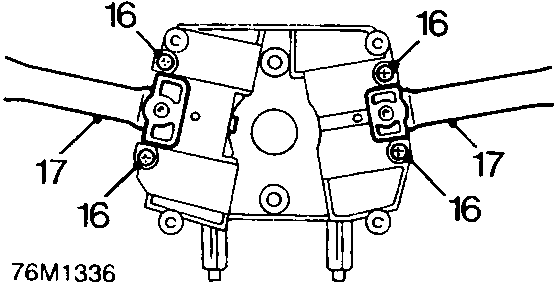

Diagram of steering column switch assembly showing components 16 and 17
  1. Remove 2 screws securing switch to column assembly.
  2. Release tab and remove switch.
  3. Fit new switch and secure with screws.

Refit

  1. Position switch assembly on steering column and tighten screws.
  2. Connect multiplugs to switch assembly.
  3. Fit indicator cancelling cam to column.
  4. Position slip ring to column assembly and secure with screws.
  5. Position upper and lower halves of nacelle and secure with screws.
  6. Position fuse box cover fit and tighten screws.
  7. Fit steering wheel, see Steering wheel.
  8. Fit drivers airbag module, see Drivers airbag module.
  9. Connect both battery leads, earth lead last.

AIRBAG SRS HARNESS

Service Repair No. 76.73.73

CAUTION:

  • Do not install used SRS parts from another car. When repairing an SRS, use only genuine new Rover parts.
  • Never attempt to modify, splice or repair SRS wiring

Note: SRS wiring can be identified by its yellow outer protective covering.

Remove

  1. Disconnect both battery leads, earth leads first.
  2. Wait 10 minutes to allow SRS back – up power circuit to discharge before commencing work.
  3. Remove drivers airbag module, see Drivers airbag module.

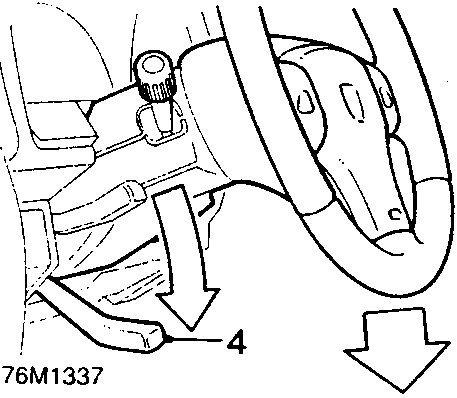

Diagram showing the lowering of the steering column and adjustment lever (component 4)
  1. Lower column and secure adjusting lever.

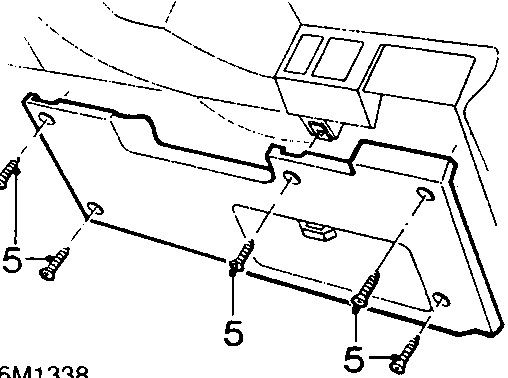

Diagram showing the removal of 5 screws securing the fusebox cover
  1. Remove 5 screws securing fusebox cover.
  2. Release and remove fusebox cover from fascia.
