Refit

76M1346

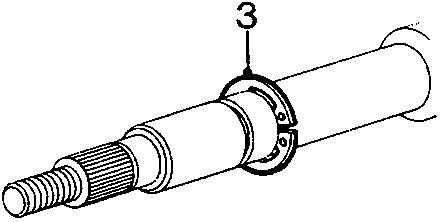

3. Remove lower circlip from top of column.
4. Fit lower circlip to top of column.

Note: The lower bush is part of new inner column, it is not possible to fit a new lower bush.

76M1347

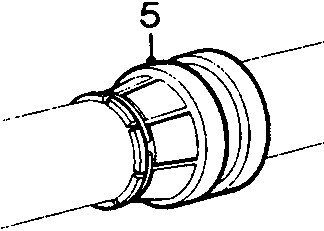

5. Apply grease to column bearings.
6. Insert inner column into outer column.
7. Refit spring washer, flat washer and circlip.

Refit

1. Position column assembly.
2. Align column to universal joint and fit bolt securing inner column to universal joint.
3. Raise column and align to top studs, fit nuts and bolts.
4. Align column and fit lower clamp.
5. Fit and tighten steering column nut and bolt to 22 Nm.
6. Tighten steering column top bolts to 22 Nm.
7. Tighten steering column top nuts to 13 Nm.
8. Tighten bolt securing column to universal joint to 22 Nm.
9. Position joint cover and fit studs and clips.
10. Connect ignition switch multiplugs and SRS harness multiplug.
11. Fit steering column switches, see Steering column switches.
12. Fit drivers airbag module, see Drivers airbag module.
13. Connect battery leads, earth lead last.
14. Carry out system check by turning the ignition on and checking that the SRS warning light illuminates then extinguishes after 3 seconds.
