Drivers airbag module

DRIVERS AIRBAG MODULE

Service Repair No. 76.73.71

CAUTION:

• Replace the airbag every 10 years.
• Do not install used SRS parts from another car. When repairing an SRS system always use genuine new Rover parts.
• Carefully inspect the airbag assembly before installing it. Do not install an airbag assembly that shows signs of being dropped or improperly handled, such as dents, cracks or deformation.
• Do not try to disassemble or tamper with the airbag assembly.
• Special bolts are necessary for installing the airbag assembly. Do not use other bolts.

Remove

1. Remove key from starter switch and disconnect both battery leads, earth lead first.
2. Wait 10 minutes to allow SRS back – up power circuit to discharge before commencing work.

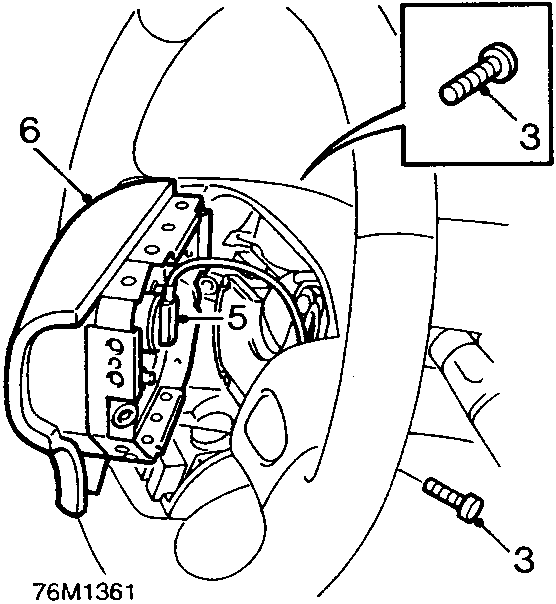

3. Remove 2 TX30 Torx bolts securing the airbag module to steering wheel.
4. Release airbag module from steering wheel.

CAUTION: Do not allow the airbag module to hang by the airbag harness.

5. Disconnect harness connector from airbag module.
6. Remove airbag module.

CAUTION: Store the airbag module in accordance with the storage procedures outlined in the Precautions part of this section.

Note: If the airbag module is to be replaced the bar code must be recorded.

Refit

1. Connect harness connector to airbag module with harness upwards as shown in No. 5 of Remove.
2. Position airbag to steering wheel.
3. Hand start the 2 Torx screws and then tighten to 8 Nm.

CAUTION: Take care not to cross thread screws.

4. With airbag module fitted and secured with bolts, press sides of steering wheel to allow ridge on steering wheel to engage in the groove on module.
5. Connect battery leads, earth lead last.
6. Confirm correct system operation by turning the starter switch to position 'II'. The SRS warning light should illuminate for approximately three seconds and then go off.
