Remove

Service Repair No. 76.73.72

CAUTION:

• Do not install used SRS parts from another car. When replacing a component always use genuine new Rover parts.
• The airbag control unit is a shock sensitive device and must be handled with extreme care. Never install a part that shows any signs of being dropped or improperly handled.

Remove

1. Disconnect both battery leads, earth lead first.
2. Wait 10 minutes to allow SRS back – up power circuit to discharge before commencing work.
3. Remove drivers airbag module, see Drivers airbag module.

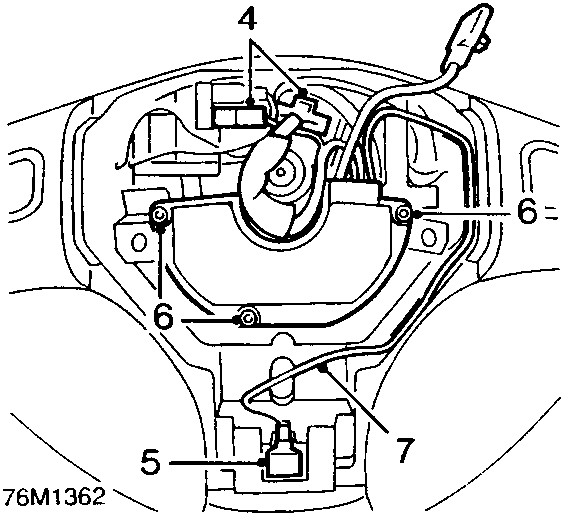

4. Disconnect SRS multiplug and Lucar.
5. Release SRS warning light from steering wheel.
6. Remove 3 TX30 Torx screws securing control unit to steering wheel.
7. Release SRS warning light harness from steering wheel and remove airbag control unit.

Refit

1. Position airbag control unit to steering wheel, ensure wires and harnesses are not trapped between the module and wheel.
2. Hand start the 3 screws and tighten to 3 Nm. Ensure screws are fully seated.
3. Ensure SRS warning light harness is correctly routed then secure to recesses in steering wheel.
4. Connect SRS multiplug and Lucar.
5. Fit drivers airbag module, see Drivers airbag module.
6. Connect both battery leads, earth lead last.
7. Confirm correct system operation by turning the starter switch to position 'II'. The SRS warning light should illuminate for approximately three seconds and then go off.
