Overhaul3rd Clutch oil feed pipe assembly

3rd Clutch oil feed pipe assembly

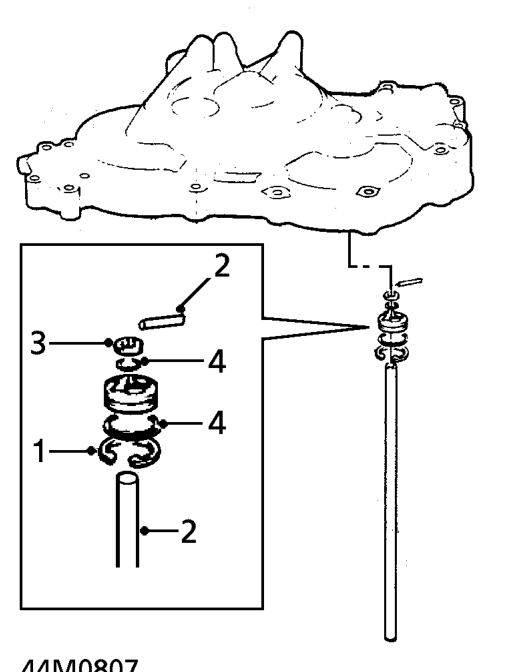

3rd clutch oil feed pipe assembly
  1. Remove and discard snap ring retaining 3rd clutch oil feed pipe assembly, withdraw assembly from right hand side cover.
  2. Remove roller securing oil feed pipe, withdraw pipe from flange.
  3. Recover collar.
  4. Remove and discard 2 ’O’ rings from oil feed pipe flange.

1st hold clutch oil feed pipe assembly

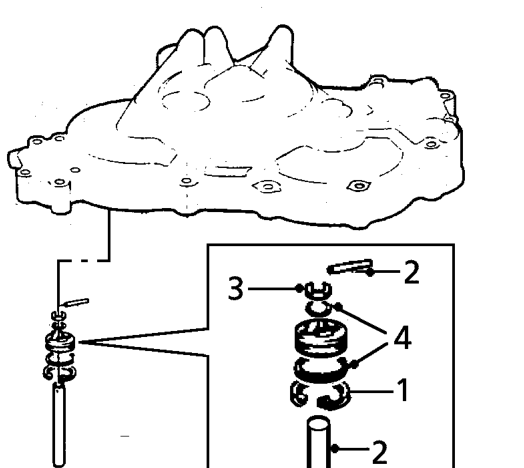

1st hold clutch oil feed pipe assembly – Remove and discard 2 ’O’ rings from oil feed pipe flange.
  1. Remove and discard snap ring retaining 1st hold clutch oil feed pipe assembly, withdraw assembly from right hand side cover.
  2. Remove roller securing oil feed pipe, withdraw pipe from flange.
  3. Recover collar.
  4. Remove and discard 2 ’O’ rings from oil feed pipe flange.
