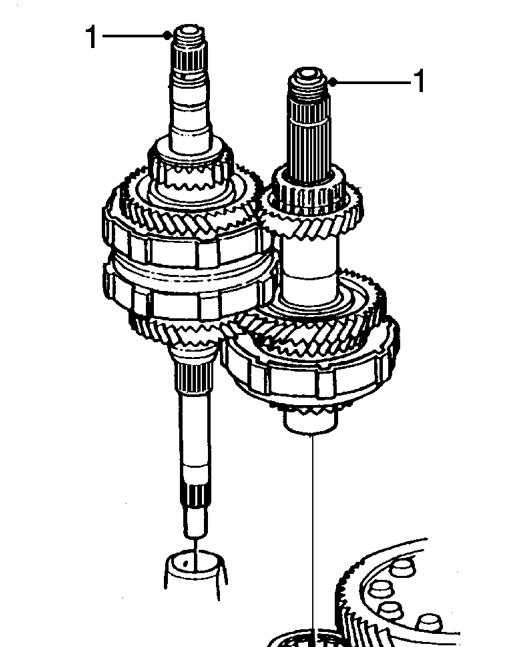

1. Position input shaft to output shaft, fit shafts into torque converter housing bearings.

CAUTION: Ensure sealing rings are not damaged.

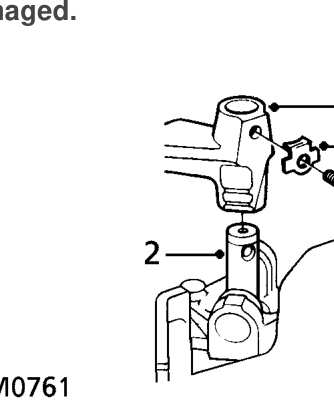

2. Rotate shift fork shaft so that the large chamfered hole will be facing reverse shift fork bolt when it is fitted.
3. Locate shift fork in reverse selector, fit fork on to shift fork shaft.
4. Fit special bolt and new tab washer, tighten bolt to 14 Nm.
5. Bend up locking tabs on tab washer.

GEARCASE - ASSEMBLING

CAUTION: Ensure all components are thoroughly cleaned and lubricated with gearbox oil prior to assembling.

Idler shaft needle bearing

1. Position gearcase on bed of hand press with torque converter housing face towards bed of press.

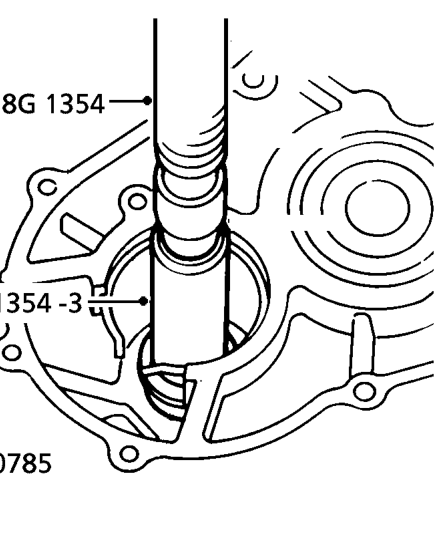

2. Locate needle bearing in gearcase and using tools, 18G 1354 and 18G 1354-3, press bearing into position.
3. Fit needle bearing stopper, fit and tighten bolt to 12 Nm.
